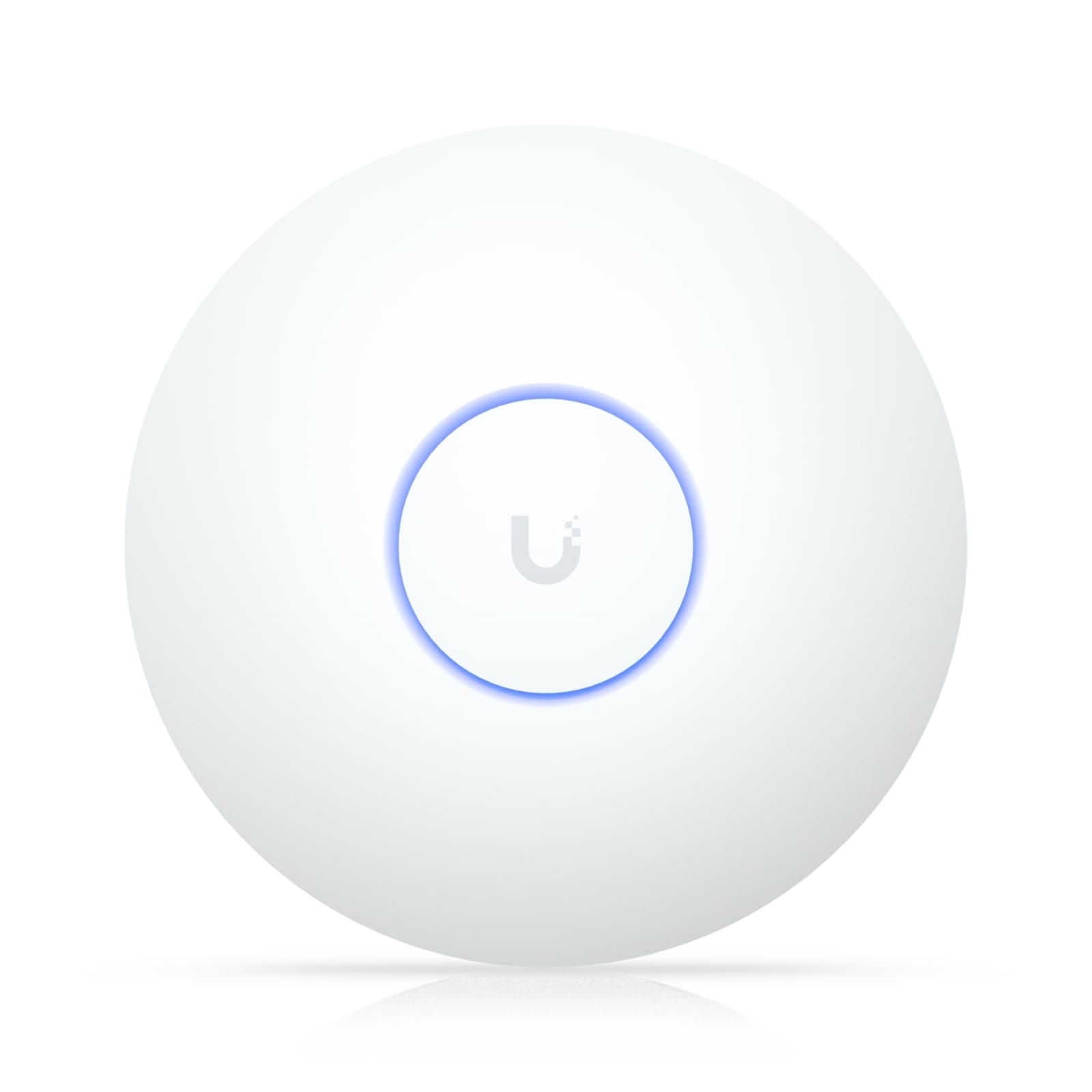

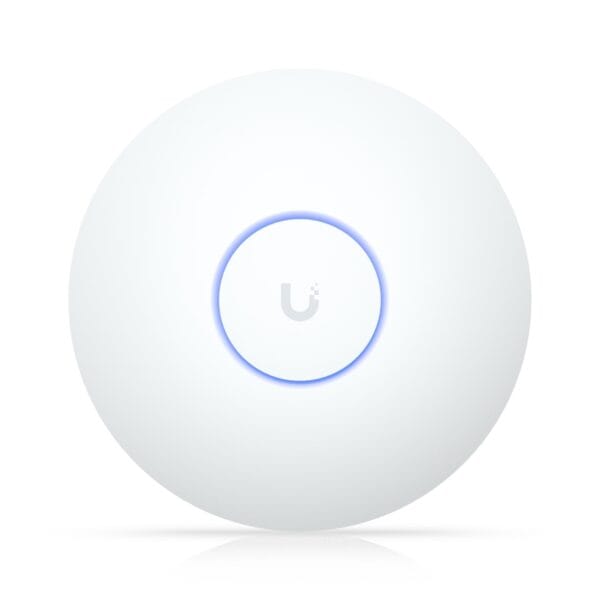

U7 Long-Range

Overview

Dimensions d175.7 x 43 mm (d6.9 x 1.7")

WiFi Standard WiFi 7

Spatial Streams 5

Coverage Area 160 m² (1,750 ft²)

Max. Client Count 300+

Uplink 2.5 GbE

Mounting Ceiling, Wall (Plastic Mounting Plate included)

Power Method PoE

MIMO

5 GHz 3 x 3 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz 4.3 Gbps (BW160)

2.4 GHz 688 Mbps (BW40)

Antenna Gain

5 GHz 6 dBi

2.4 GHz 4 dBi

Max. TX Power

5 GHz 27 dBm

2.4 GHz 26 dBm

Supported Data Rates

802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing Yes

Band Steering Yes

802.11v BSS Transition Management Yes

802.11r Fast Roaming Yes

802.11k Radio Resource Management (RRM) Yes

Advanced Radio Management Yes

Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal

Custom Branding Landing Page Yes

Voucher Authentication Yes

Payment-Based Authentication Yes

External Portal Server Support Yes

Password Authentication Yes

Guest Network Isolation Yes

Private Pre-Shared Key (PPSK) Yes

WiFi Speed Limiting Yes

Client Device Isolation Yes

WiFi Schedules Yes

RADIUS over TLS (RadSec) Yes

Dynamic RADIUS-assigned VLAN Yes

Hardware

Max. Power Consumption 14W

Supported Voltage Range 42.5—57V DC

Networking Interface (1) 2.5 GbE RJ45 port

Weight 448 g (15.8 oz)

Management Ethernet

Enclosure Material Polycarbonate, aluminum alloy

Mount Material Polycarbonate, galvanized steel (SGCC)

LEDs

System White/Blue

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant Yes

Certifications CE, FCC, IC

Ambient Operating Temperature -30 to 50° C (-22 to 122° F)

Ambient Operating Humidity 5 to 95% noncondensing

Software

Application Requirements

UniFi Network Version 9.1.120 and later

Mobile App iOS version 10.20.2 and later Android version 10.21.7 and later
