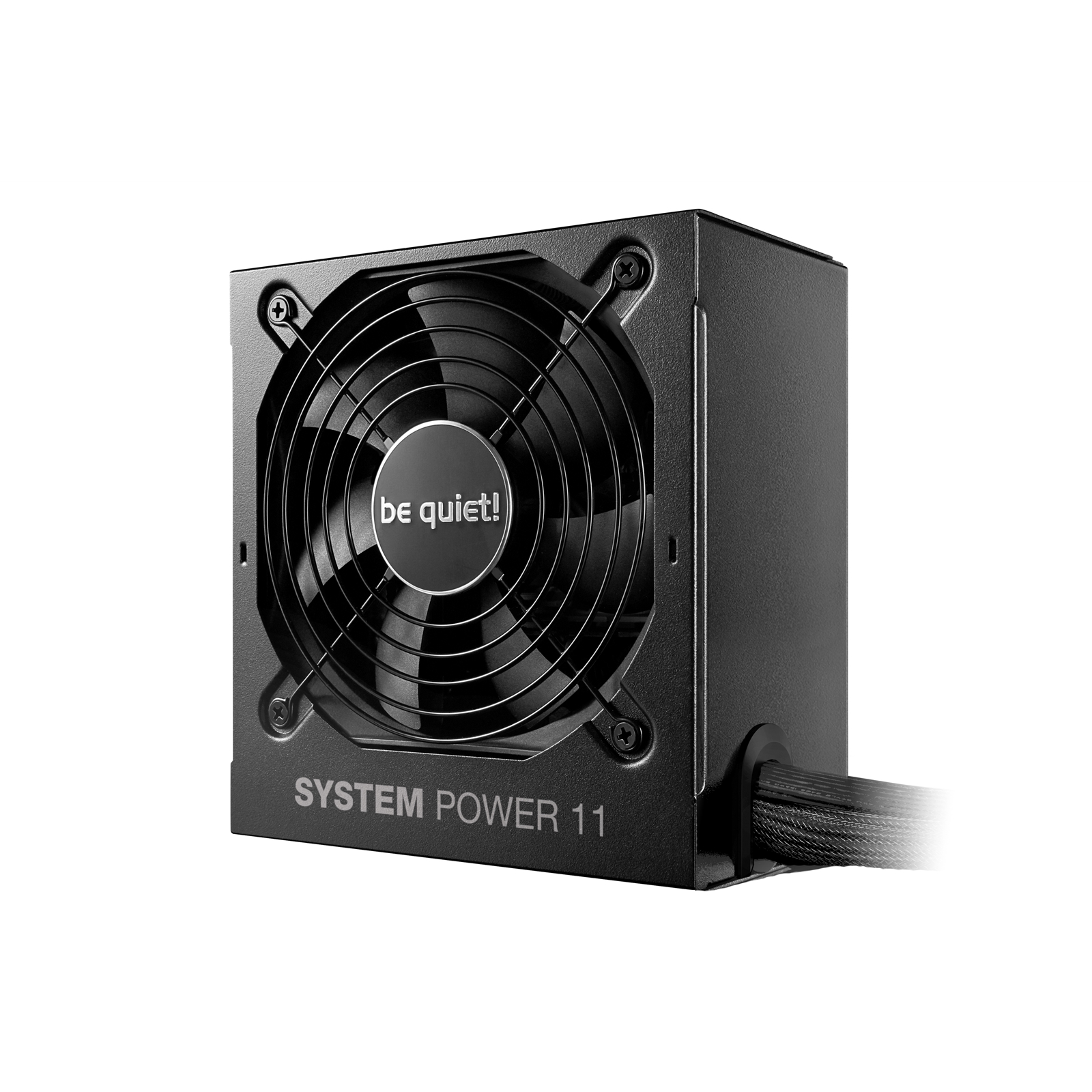

SYSTEM POWER 11 650W

Proven Reliability, Quiet Operation System Power 11 is the ATX 3.1 PSU for value-oriented PC builders that do not want to pass on reliability and quietness.

Highlights

ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Temperature-controlled 120mm quality fan reduces system noise Rock-solid stability with a strong 12V-rail Tight voltage regulation using DC-to-DC technology Up to one PCIe 5.1 12V-2x6 600W and up to 3 PCIe 6-2 connectors for high-end GPUs Dependable operation to support powerful GPUs Stand-by drain of less than 0.15 watts 80 PLUS Bronze efficiency (up to 90.0 %) 5-year manufacturer’s warranty Product conception, design and quality control in Germany

General

Model System Power 11 650 W

Continuous power (W) 550

Peak power (W) No

Form factor Version 3.1

Form factor EPS 12V Version 2.92

Topology Double forward + DC-DC

Digitally controlled No

Voltage (Vac) 200 - 240

Frequency (Hz) 50

Input current (A) 5

Power factor at 100% load >0.98

Modern standby Yes

Power consumption in standby (W) 100,000

Operating temperature up to (°C) 40

Efficiency 80 PLUS certification Efficiency (%) at 230V, 2% load63.9 Bronze Efficiency (%) at 230V, 10% load 84.4 Bronze Efficiency (%) at 230V, 20% load 88.6 Bronze Efficiency (%) at 230V, 50% load 89.7 Bronze Efficiency (%) at 230V, 100% load 86.7 Bronze

Fan and cooling technology

Cybenetics Noise Rating No

Fan Silence-optimized be quiet! fan

Fan size (mm) 120

Bearing technology Rifle

Motor technology 4-pole fan motor

Max. fan speed (rpm) 2100

dB(A) at 10% load 10.9

dB(A) at 20% load 10.9

dB(A) at 50% load 11.8

dB(A) at 100% load 30.9

Output

Multi-rail operation (12V rails) No

12V single rail operation Yes

Overclocking key No

+3.3V (A) 20

+5V (A) 20

+12V1 (A) 54.17

+12V2 (A) no

+12V3 (A) No

+12V4 (A) No

+12V5 (A) No

+12V6 (A) No

-12V (A) 0.3

+5Vsb (A) 3

Max. combined power 12V (W) 650

Max. combined power 12V-2x6 (W) 450

Max. combined power 3.3V + 5V (W) 120

Hold-up time at 100% load (ms) 17.04

Hold-up time at 80% load (ms) 21.10

Power good signal (ms) 100 - 150

Cables and connectors

Modular cables No

Sleeved cables P24

Flat cables P4+4, P4, PCIe, drives

Maximum cable length (cm) 55

Cable length to motherboard (cm) 79

No. of cables 8

ATX-Motherboard (20+4-pin) 1

P4+4 (CPU) 1

P8 (CPU) No

P4 (CPU) 1

12V-2x6 cables 1

PCI-e 6+2-pin (GPU) 2

PCI-e 6-pin (GPU) No

SATA 5

PATA 1

FDD (Floppy) No

Protection

OTP (over temperature protection) Yes

OCP (over current protection) Yes

OPP (over power protection) Yes

SCP (short circuit protection) yes

OVP (over Voltage protection) Yes

UVP (under Voltage protection) Yes

SIP (Surge & Inrush protection) Yes

Safety certification

BSMI No

CB No

CCC No

CE Yes

cRUus No

cTUVus No

CU Yes

FCC No

RCM No

TÜV Yes

UKCA Yes

IRAM No

Environmental directives

Energy Star 8.0

ErP Yes

WEEE Yes

RoHS Yes

Triman No

Scope of delivery

Thumb screws No

Screws Yes

Cable ties Yes

Velcro cable ties No

User manual languages No

OCK slot bracket with switch / OCK jumper No

SFX-to-ATX adapter bracket No

Casing

Dimensions without cable (L x W x H), (mm) 86 x 150 x 140

Weight (kg) 1.97

Color Black

Logistics data and RRP

Dimensions, package (L x W x H), (mm) 268 x 195 x 97

Gross weight, package (kg) 2.4

Pieces per packaging unit 6

Dimensions, shipping box (L x W x H), (mm) 556 x 311 x 218

Gross weight, shipping box (kg) 15.2

Service

Warranty (Years) 5
