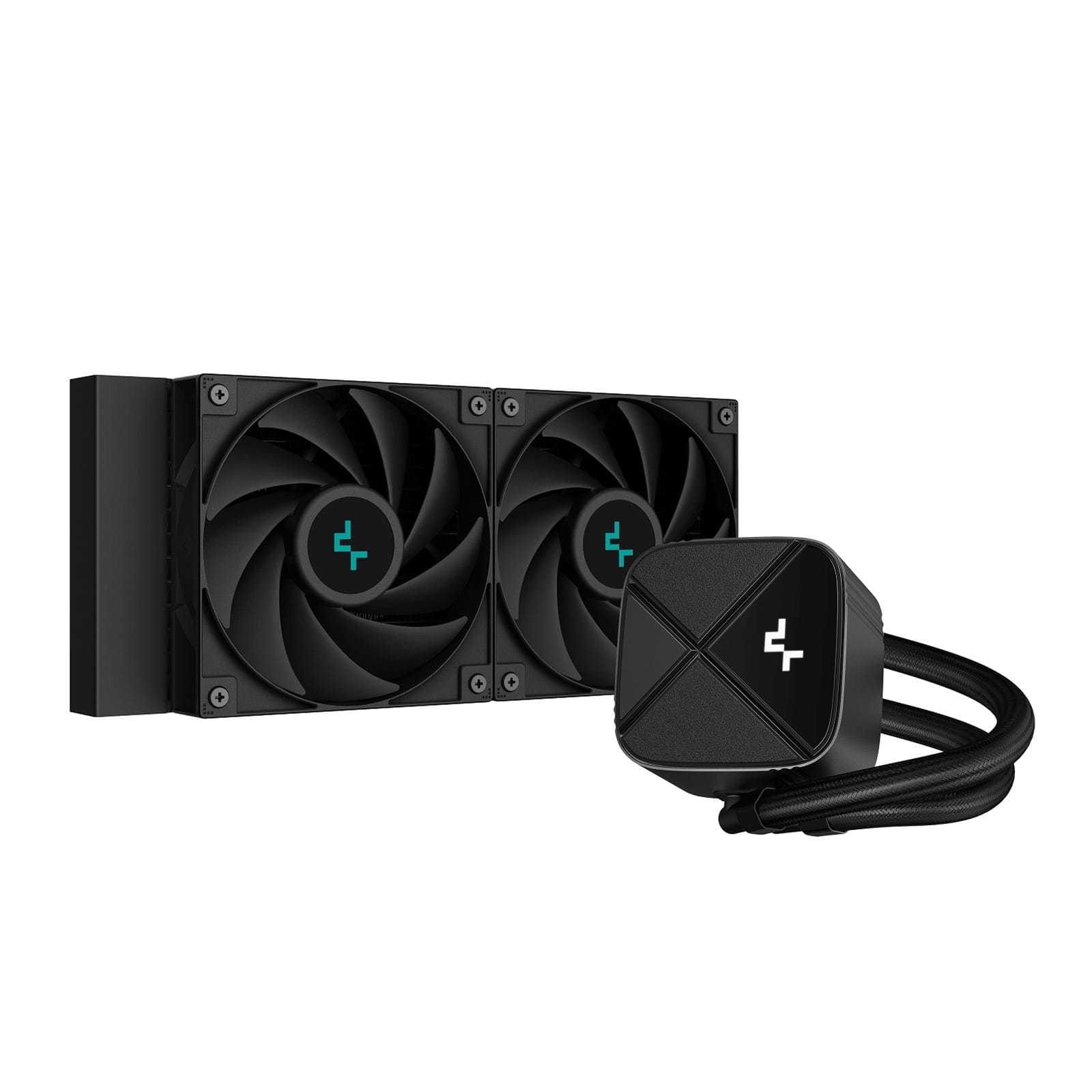

EMBRACE THE DARKNESS There is something about premium systems with little to no lighting. The LS520S ZERO DARK is the perfect liquid solution for cooling higher end processors that emphasizes the actual components. RGB need not apply

BUILT STRONG! Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large pump cover is rotatable, and easy to adjust.

HIGHLY EFFICIENT FANS Optimized PWM fans are included with the LS520S ZERO DARK and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydro bearing. The LS520S ZERO DARK will include three of these specialized PWM fans.

SIMPLIFIED INSTALLATION The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS520S ZERO DARK to the latest mainstream CPUs is included in the box, so you are ready to go.

Technical Spec

Net Weight 1346 g

Radiator Dimensions 282 x 120 x 27 mm(L x W x H)

Radiator Material Aluminum

Tube length 410 mm

Pump Dimensions 85 x 73 x 55 mm(L x W x H)

Pump Speed 3100 RPM±10%

Pump Noise 19 dB(A)

Pump Connector 3-pin

Pump Rated Voltage 12 VDC

Pump Rated Current 0.5A

Pump Power Consumption 6W

Fan Dimensions 120 x 120 x 25 mm(L x W x H)

Fan Speed 500~2250 RPM±10%

Fan Airflow 85.85 CFM

Fan Air Pressure 3.27 mmAq

Fan Noise =32.9 dB(A)

Fan Speed (with LSP) 500~1600 RPM±10%

Fan Airflow (with LSP) 60.85 CFM

Fan Air Pressure (with LSP) 1.65 mmAq

Fan Noise (with LSP) =28.2 dB(A)

Fan Connector 4-pin PWM

Bearing Type Hydro Bearing

Fan Rated Voltage 12 VDC

Fan Rated Current 0.25 A

Fan Power Consumption 3.0 W

LED Type White LED

EAN 6933412728429

P/N R-LS520-BKNNMM-G-1
