DeepCool SC790 2-in-1 Addressable RGB & PWM Fan Hub (R-SC790-BKNSNN-G), 6-Port
Code: R-SC790-BKNSNN-G
Overview
Delivery and setup: The price shown is for this product supplied directly to you from our warehouse, without setup by Edworthy Media and Technology Limited. Setup is available at an additional cost. Please contact us before ordering for a quote including setup.

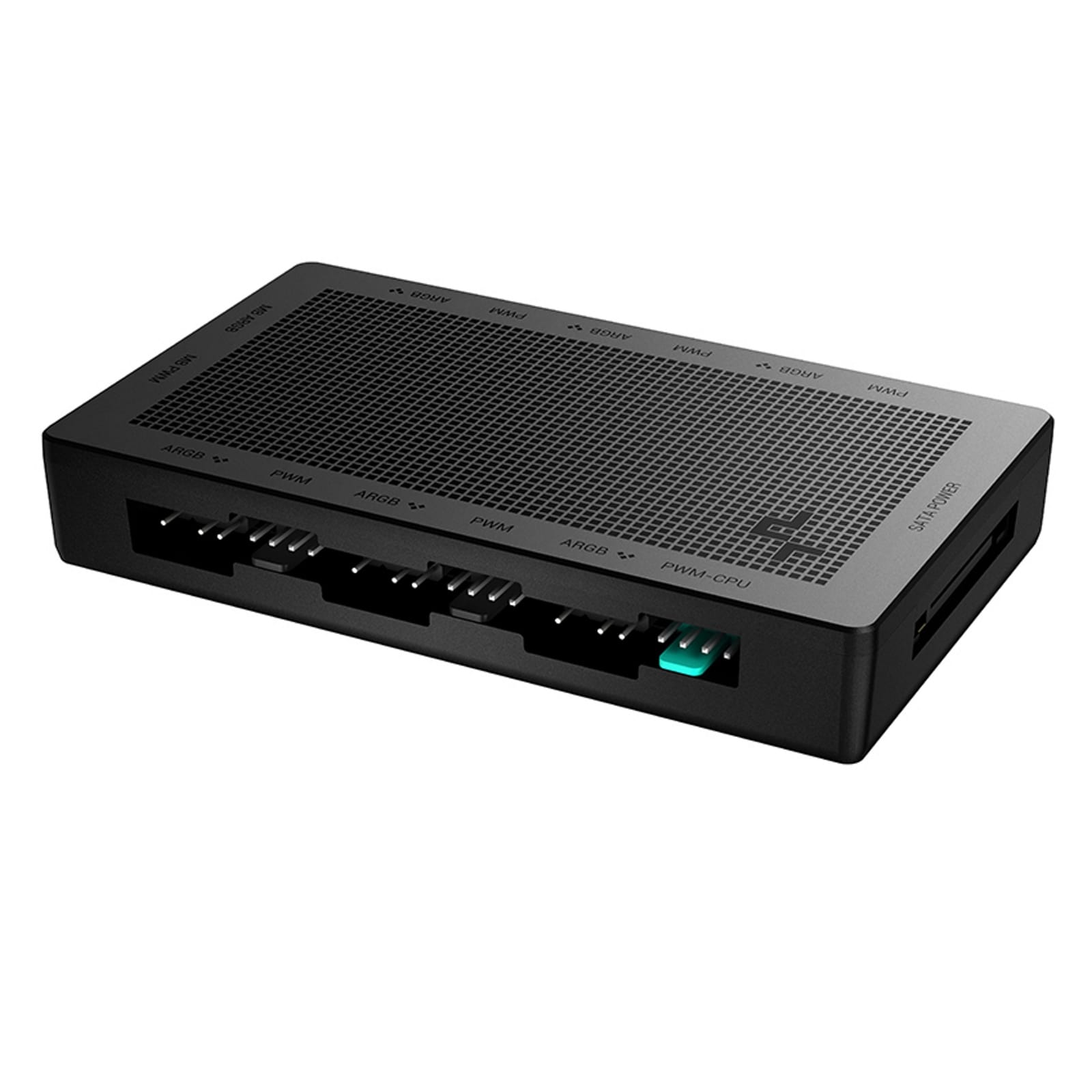

SC790 2-in-1 PWM & RGB Hub The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
Compatible with... - Asus Aura Sync - Gigabyte RGB Fusion - MSI Mystic Light Sync - ASRock Polychrome Sync
PWM & ARGB SPLITTER HUB The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices. - The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else. - Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome. - This product is NOT compatible with 12V 4-Pin RGB devices.
Product Dimension 102 x 60 x 17 mm
Net Weight 69g
Port Type ARGB 3-Pin PWM 4-Pin
Fan Ports 6 Ports x 4-Pin PWM
Length of Fan Connector Cable 24AWG 500 mm
Fan Rated Voltage 12V DC
Fan Rated Current 2.0A (1 Port) / Total 4.5A (6 Ports)
Addressable RGB Ports 6 Ports x 3-Pin Addressable RGB
Length of ARGB Connector Cable 24 AWG 538mm (Asus Asrock MSI) + 50mm (Gigabyte)
RGB Rated Voltage 5V DC
RGB Safety Current 2.0A (1 Port) / Total 4.5A (6 Ports)
Power Connector SATA Power
Power Safety Current 4.5A Max
Mounting Method Magnetic
Product Colour Black
Specifications
| Brand | Deepcool |
|---|---|
| Product code | R-SC790-BKNSNN-G |
| Weight | 0.07 kg |
| Shipping weight | 0.07 kg |
