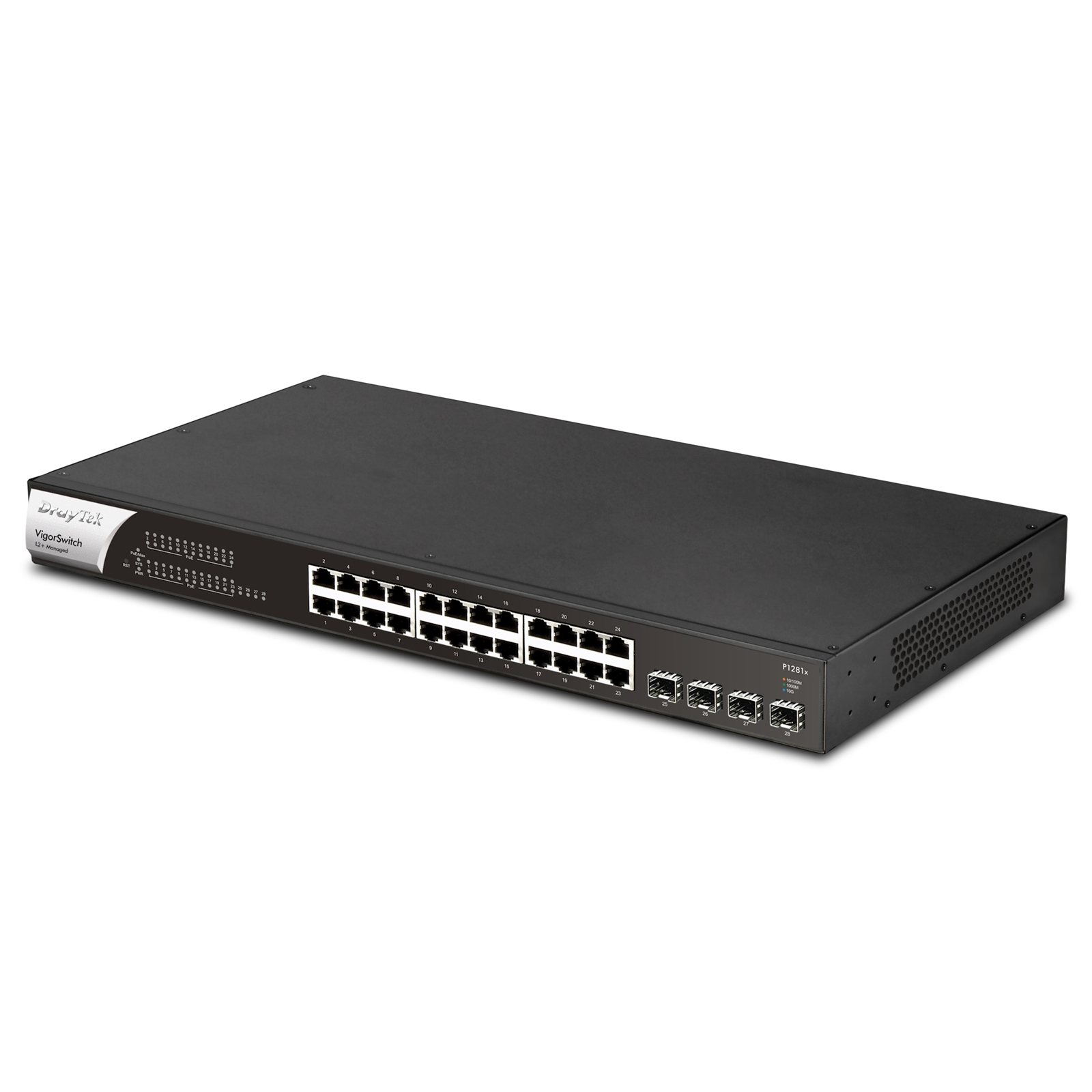

VigorSwitch P1281x 24 Port GbE 4 Ports 10Gbps SFP+ Switch with PoE/PoE+ VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ Ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps 4 x SFP+ 10GbE Ports for Uplink / Fibre PoE (Power-over-Ethernet) for IP phones, wireless access points, IP cameras etc. 140-watt Power-over-Ethernet budget Cloud Managed with VigorACS 1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN ONVIF IP Camera Surveillance Management with PoE Device Check Access Control List (ACL) for port & traffic level security Port Mirroring & Link Aggregation IGMP Snooping & Querying IPv4 and IPv6 Support with IP Conflict Prevention Centrally managed or standalone operation

Physical Interfaces 24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps 4 SFP+ Ports – 1000Mbps/10Gbps Factory Reset Button

PoE
