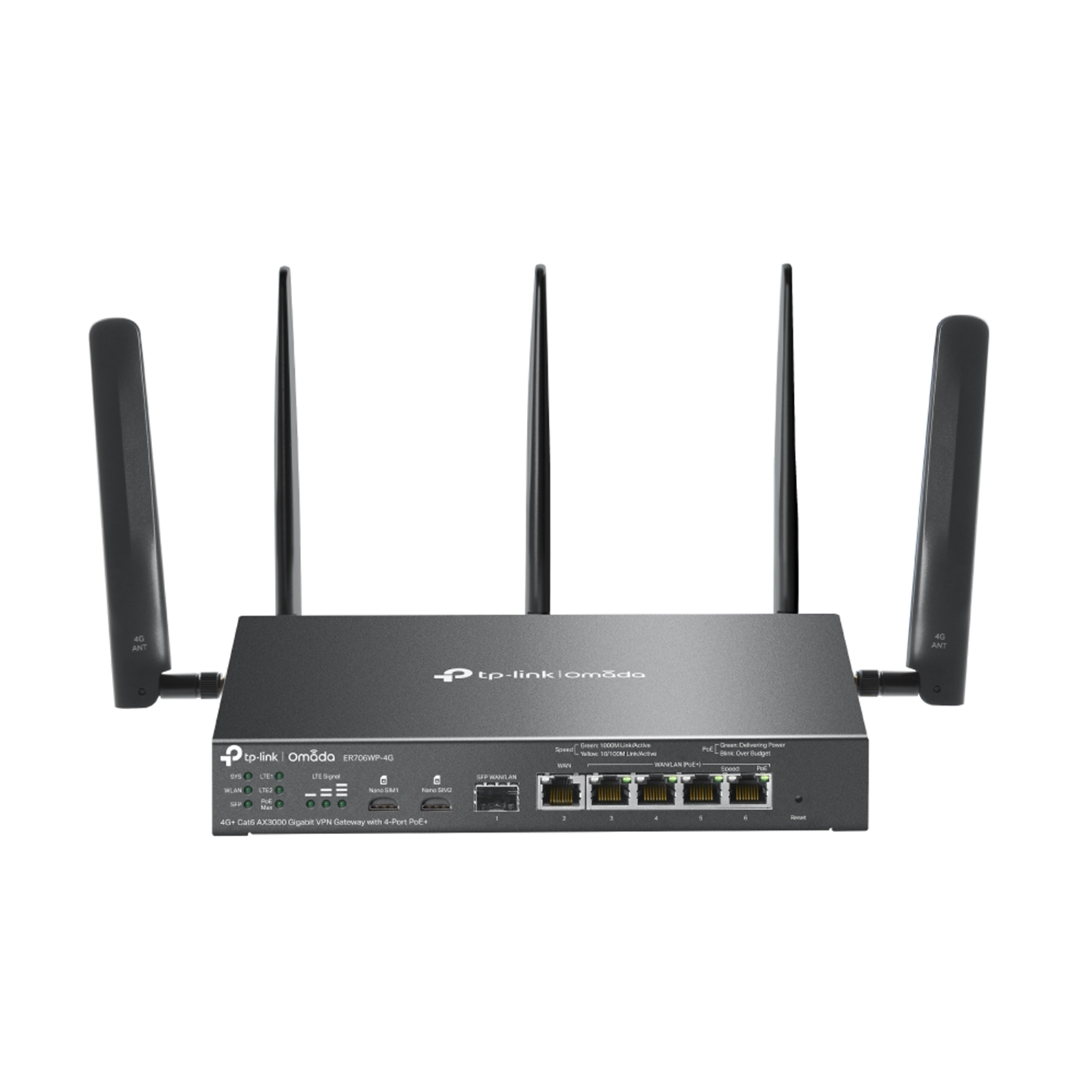

TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+

Features

Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US). AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*** 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity. 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals. Centralized Management: Cloud access and the Omada app for easy management. Omada Mesh: Seamlessly connects to EAPs that support mesh technology.* High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

4G

Network Type LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/ 900/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

Carrier Aggregation of EU B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41

SIM Type 2x Nano SIM Card( (4G+ Cat6)

Security DPI - Application control via DPI / Updated app library IDS/IPS - Signature-based IPS/IDS threat detection Access Control - Source/Destination IP Based Access Control

Filtering Web Group Filtering URL Filtering Web Security

ARP Inspection Sending GARP Packets ARP Scanning IP-MAC Binding

Attack Defense TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN

Hardware Features

Interface 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports

Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Button Reset Button

Power Supply 4 Ports PoE+ Output, 45 W PoE Budget

Wi-Fi Frequency & Signal Rate 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160)

Flash 256 MB NAND

DRAM 512 MB DDR4

LED SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)

Dimensions ( W x D x H ) 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included)

Antenna Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas LTE: Two 4.0dBi omnidirectional detachable antennas

Mounting Desktop/Wall-Mounting/Rackmount

Max. Power Consumption 64.9W with PoE Max; 19.8W without PoE

Performance

WireGuard VPN 387.7Mbps

Concurrent Session 150,000

New Sessions /Second 5,100

NAT NAT (Static IP) - 947.1Mbps / 940.1Mbps NAT(DHCP) - 949.2Mbps / 941.1Mbps NAT(PPPoE) - 942.6Mbps / 941.1Mbps NAT (L2TP) - 875.4Mbps / 892.0Mbps NAT (PPTP) - 881.2Mbps / 895.8Mbps

IPsec VPN Throughput ESP-SHA1-AES256: 652.2Mbps ESP-SHA256-AES256: 654.4Mbps ESP-SHA384-AES256: 646.5Mbps ESP-SHA512-AES256: 670.5 Mbps

OpenVPN 115.5Mbps

L2TP VPN Throughput Unencrypted: 990.0Mbps Encrypted: 475.0Mbps

SSL VPN Throughput 122.5Mbps

66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate - 81274 pps / 91275 pps

Wireless Features

Advanced Features Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit: Based on SSID/Client Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multiple SSIDs: 16 in total (8 per radio)

Guest Network Support

Basic Functions WAN Connection Type Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP

MAC Clone Modify WAN Address

DHCP DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP

SMS Receive / Send SMS

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN - 802.1Q VLAN IPTV - IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features

Access Control IP/Port/Protocol/Domain Name Filtering

Advanced Routing Static Routing Policy Routing RIP OSPF

Bandwidth Control IP-Based Bandwidth Control

Load Balance Intelligent Load Balance Application Optimized Routing Link Backup(Timing, Failover) Online Detection

NAT One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP

Session Limit IP-Based Session Limit

VPN

GRE Only in Standalone Mode

SSL VPN 50 Tunnels

IPsec VPN 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)

PPTP VPN PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption

L2TP VPN L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec

OpenVPN OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode

WireGuard VPN 20 Tunnels

Authentication

Web Authentication No Authentication Simple Password Hotspot (Local User / Voucher / SMS / Radius) External Radius Sever External Portal Sever LDAP

Management Features

Omada App Yes.

Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller

Cloud Access Yes.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support

Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

Management Features Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration

Other

Network Services Enabled by Default - Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 Protocol: TCP

Others

Certification CE, FCC, RoHS

Package Content ER706WP-4G Power Adapter Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux

Environment Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
