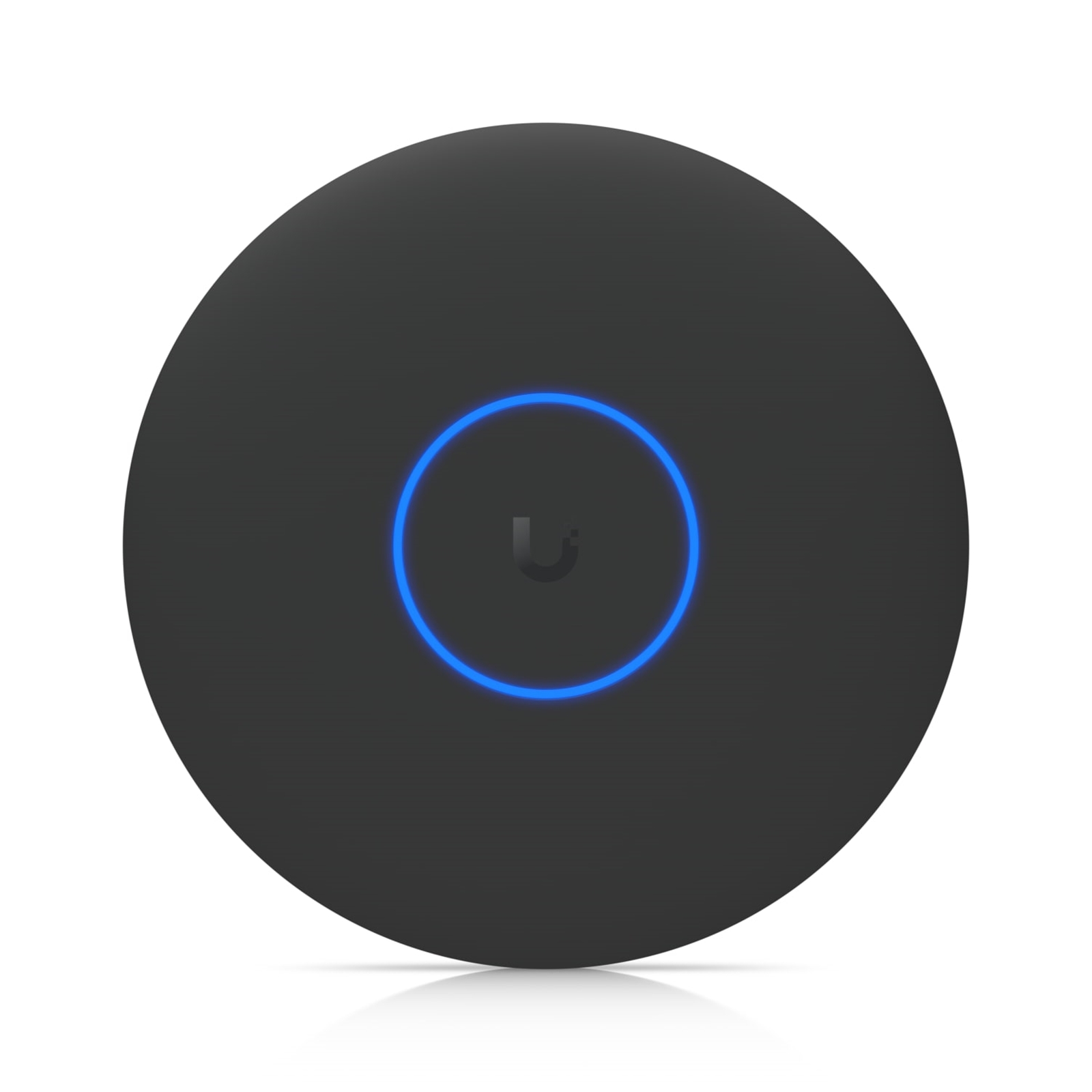

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support 8 spatial streams Real-time spectral analysis for enhanced channel selection 160 m2 (1,750 ft2) coverage 500+ connected devices Powered using PoE++ 10 GbE uplink

Dimensions d215 x 32.5 mm (d8.5 x 1.3")

WiFi Standard WiFi 7

Spatial Streams 8

Coverage Area 160 m2 (1,750 ft2)

Max. Client Count 500+

Uplink 10 GbE

Mounting Ceiling, Wall (Lite Mount Included)

Power Method PoE++

MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO)

5 GHz 4 x 4 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 6 GHz 5.8 Gbps (BW320)

5 GHz 8.6 Gbps (BW240)

2.4 GHz 688 Mbps (BW40)

Antenna Gain 6 GHz 6 dBi

5 GHz 6 dBi

2.4 GHz 4 dBi

Max. TX Power 6 GHz 24 dBm

5 GHz 29 dBm

2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing Yes

Band Steering Yes

802.11v BSS Transition Management Yes

802.11r Fast Roaming Yes

802.11k Radio Resource Management (RRM) Yes

Zero-Wait DFS Yes

Advanced Radio Management Yes

Real-Time Spectral Analysis Yes

Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal Yes

Private Pre-Shared Key (PPSK) Yes

WiFi Speed Limiting Yes

Client Device Isolation Yes

WiFi Schedules Yes

RADIUS over TLS (RadSec) Yes

Dynamic RADIUS-assigned VLAN Yes

Max. Power Consumption 29W

Supported Voltage Range 42.5 - 57V DC

Networking Interface (1) 10 GbE RJ45 port

Weight 800 g (1.8 lb)

Management Ethernet

Enclosure Material UV-stabilized polycarbonate, aluminum alloy

Mount Material Stainless steel (SUS304), galvanized steel (SGCC)

LEDs System

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications CE, FCC, IC
