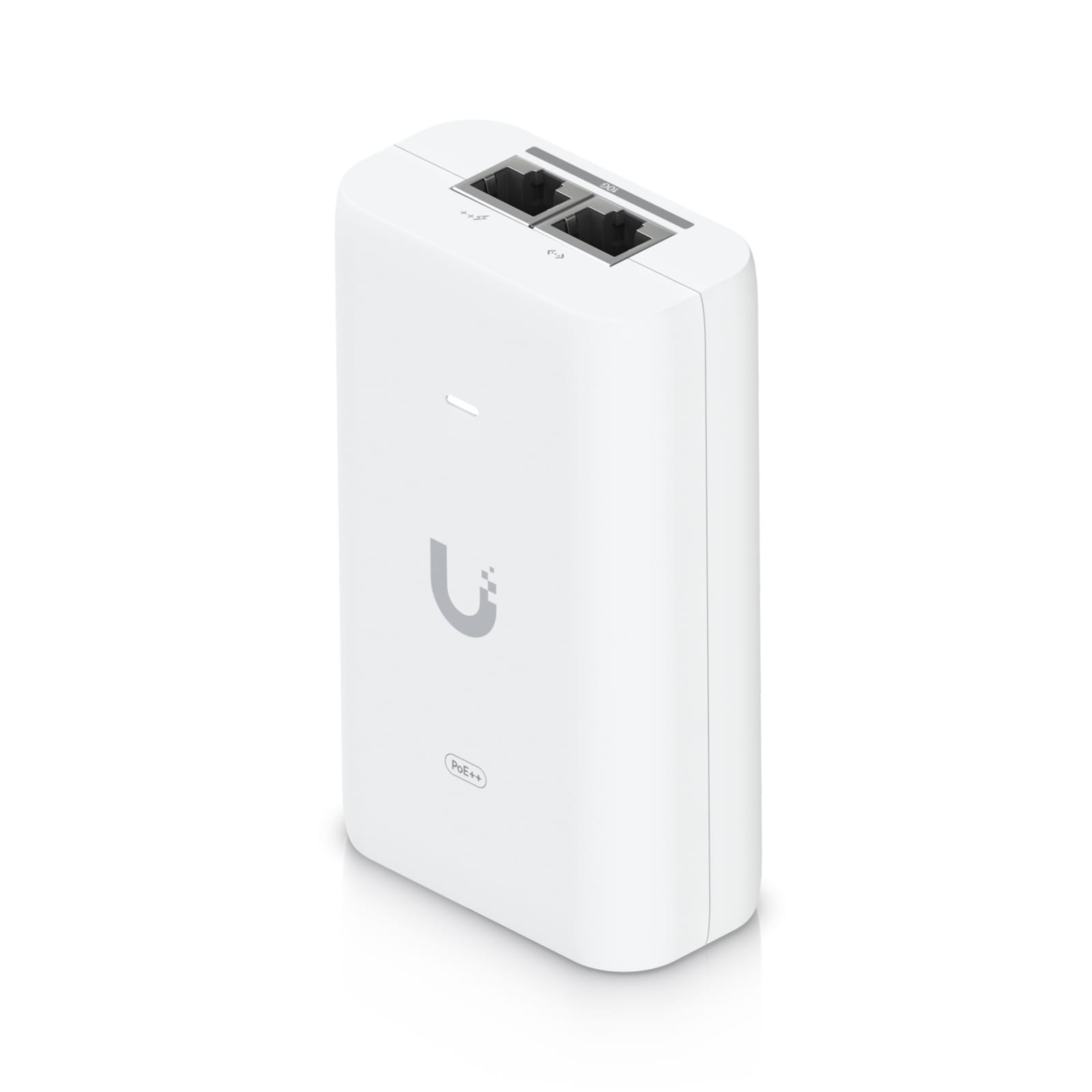

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 60W of PoE++ Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE++ output LED indicator for status monitoring

Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight 210 g (7.4 oz)

Output Voltage 54V DC @ 1.12A

LAN Activity Indicator No

Gigabit LAN Port Yes, up to 10 GbE

Remote Reset Capability No

Reset Button No

Rated Voltage 100—240V AC @ 50/60Hz

Input Current 1.5A max.

Inrush Current 88%

Output Ripple 1% max.

Switching Frequency 65 kHz

Line Regulation < 2%

Load Regulation < 5%

2-Pair Powering No

4-Pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE RJ45 shielded socket

Surge Protection Difference and common mode

Clamping Protection 11V data, 60V power

Max. Surge Discharge 1500A power

Peak Pulse Current 36A data

Shunt Capacitance
