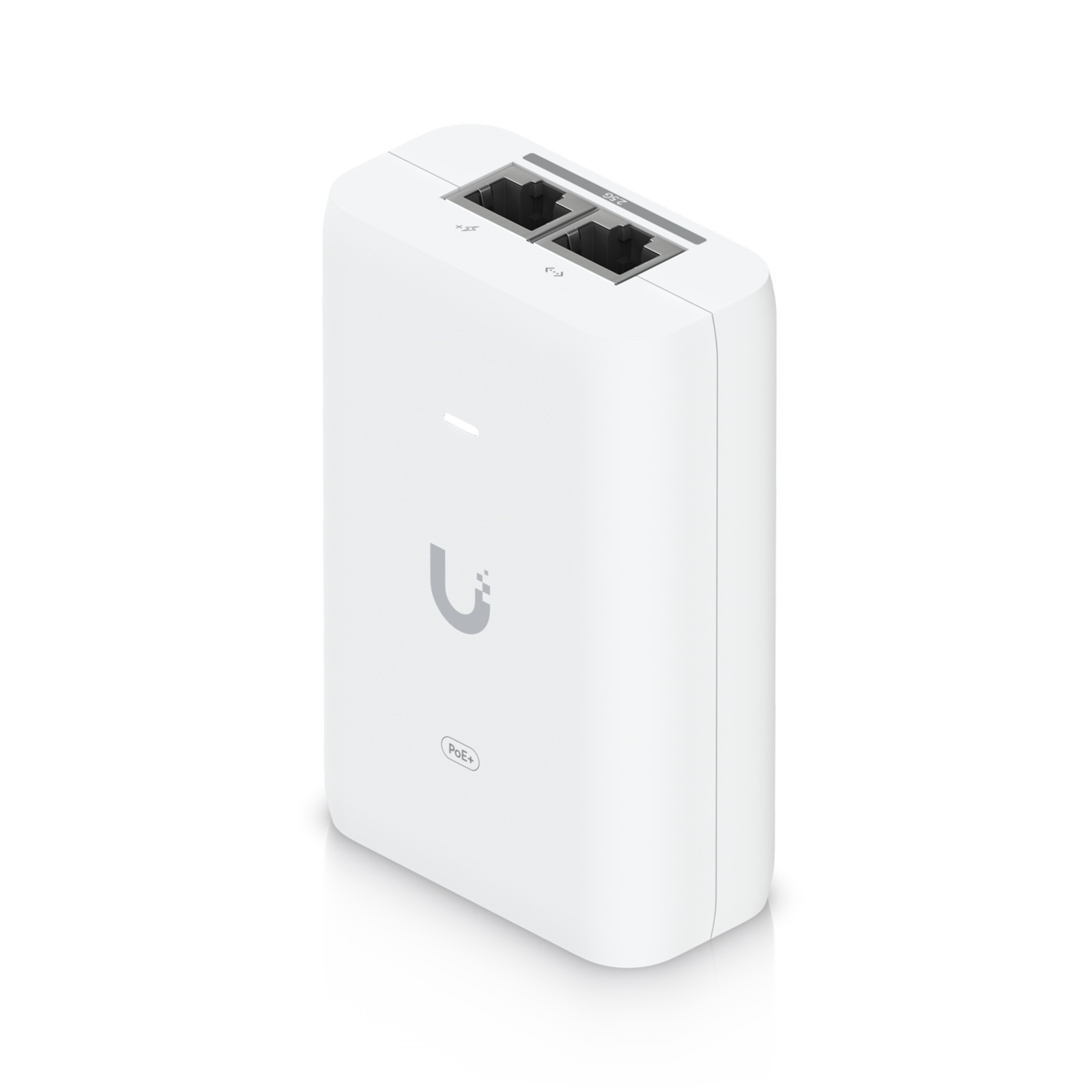

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 30W of PoE+ Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE+ output LED indicator for status monitoring

Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight 156 g (5.5 oz)

Output Voltage 48V DC @ 0.65A

LAN Activity Indicator No

Gigabit LAN Port Yes, up to 2.5 GbE

Remote Reset Capability No

Reset Button No

Rated Voltage 100—240V AC @ 50/60Hz

Input Current 0.75A max.

Inrush Current 87%

Output Ripple 1% max.

Switching Frequency 65 kHz max.

Line Regulation < 1%

Load Regulation < 3%

2-Pair Powering Pins 4, 5 (+) and 7, 8 (-)

4-Pair Powering No

Data In / POE RJ45 shielded socket

Surge Protection Difference and common mode

Clamping Protection 11V data, 60V power

Max. Surge Discharge 1500A power

Peak Pulse Current 36A data

Shunt Capacitance
