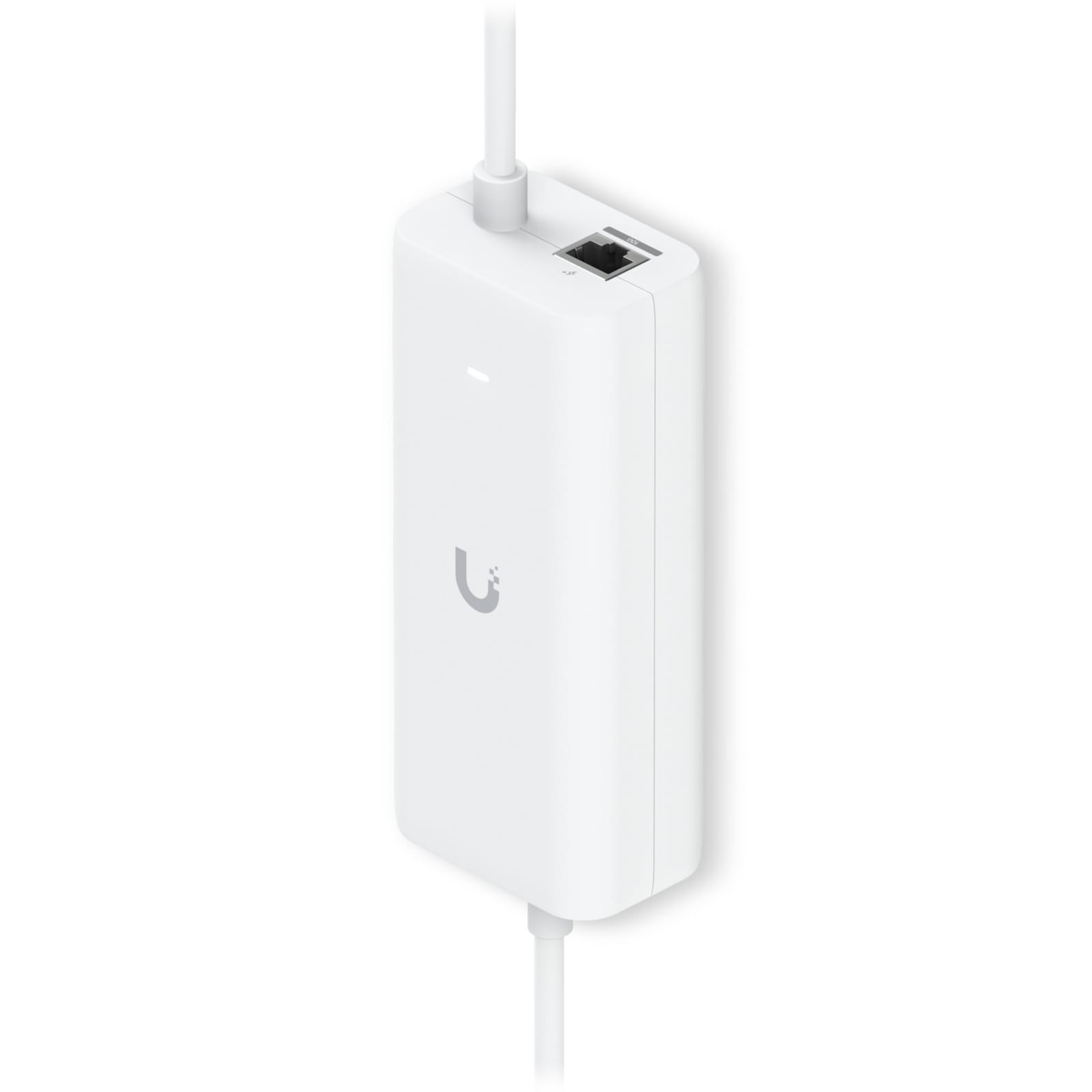

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

Delivers up to 30W of PoE+ Supports wall mount, DIN rail and floating mount - sold separately Lockable latch designed for power cord security

Dimensions 146 x 62 x 42 mm (5.7 x 2.4 x 1.7")

Weight 358 g (12.6 oz)

Cable Length Type-C/Ethernet: 150 cm (4.9 ft) Power cord: 180 cm (5.9 ft)

Output Voltage Type-C: 5V@ 5A PoE+: 48V@ 0.65A

LAN Activity Indicator No

Gigabit LAN Port Up to 10 GbE

Remote Reset Capability No

Reset Button No

Rated Voltage 100—240V AC @ 50/60Hz

Input Current 1.5A max.

Inrush Current 120A

Efficiency 82%

Output Ripple 1% max.

Switching Frequency 65 kHz

Line Regulation < 5%

Load Regulation < 5%

2-Pair Powering No

4-Pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE RJ45 shielded socket

Surge Protection Difference and common mode

Clamping Protection 11V data, 60V power

Max. Surge Discharge 1500A power

Peak Pulse Current 36A data

Shunt Capacitance
