Overview
Delivery and setup: The price shown is for this product supplied directly to you from our warehouse, without setup by Edworthy Media and Technology Limited. Setup is available at an additional cost. Please contact us before ordering for a quote including setup.

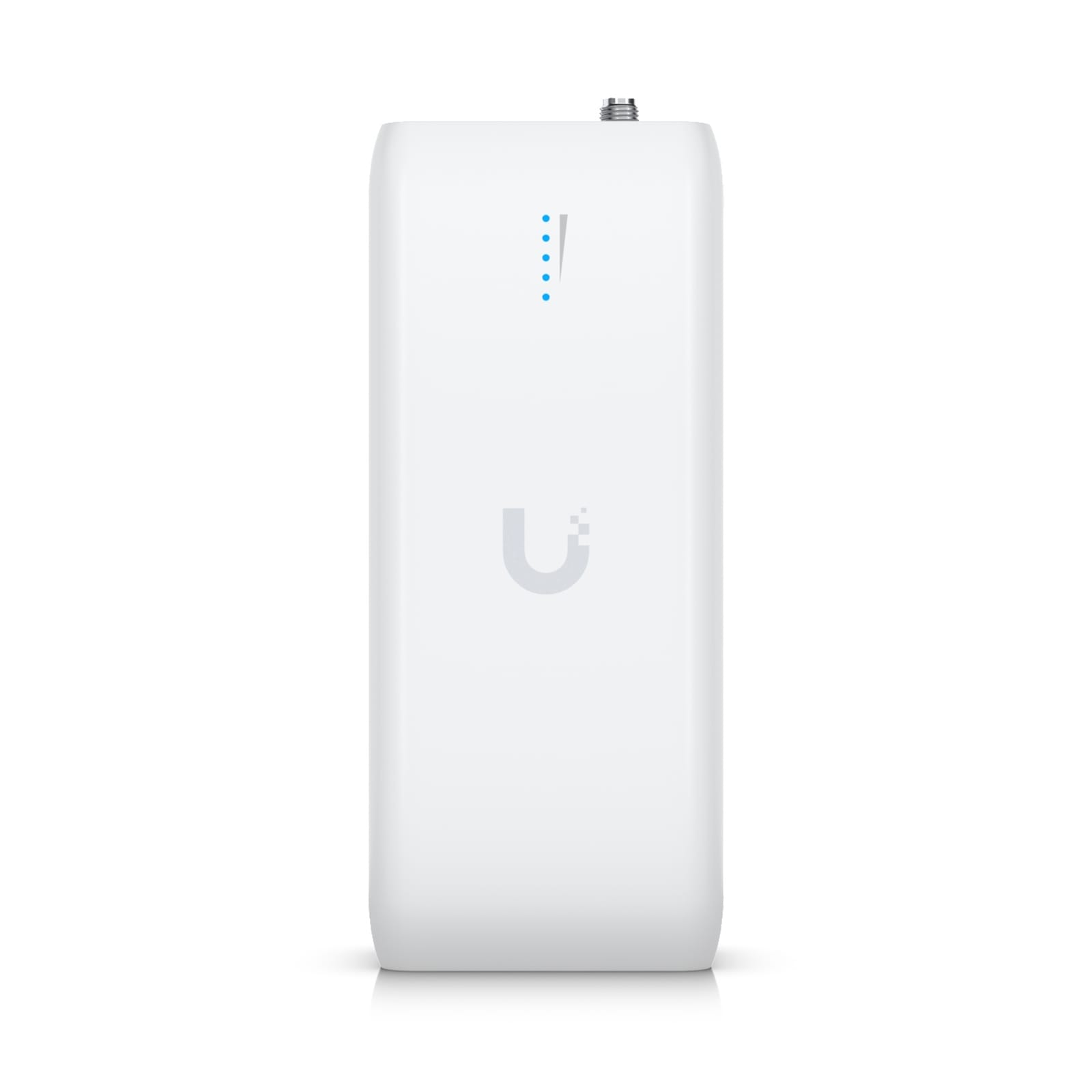

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
WiFi Standard WiFi 5
Spatial Streams 2
Mounting Locations Wall/Table
Power Method 100—240V AC, 0.45A Max., 50/60 Hz
MIMO 2 x 2
Max. Data Rate 866.7 Mbps (BW80)
Max. TX Power 21 dBm
Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Wireless Security WPA2 AES (Always On)
Max. Power Consumption 25W (AC input) 10W (Excluding PoE output)
Supported Voltage Range 100—240V AC
Supported Voltage Range 100—240V AC
Networking Interface (1) GbE RJ45 port
Antennas (1) Internal antenna (1) RP-SMA connector for external omni-antenna
Management WiFi
Weight 200 g (7.1 oz)
Mount Material Polycarbonate
Enclosure Material Polycarbonate
Button (1) Factory-reset
System LEDs (4) Blue: signal (1) White/blue: indicator
Channel Bandwidth 20/40/80 (MHz)
Certifications CE, FCC, IC
Specifications
| Brand | Ubiquiti |
|---|---|
| Product code | UDB |
| Weight | 0.2 kg |
| Shipping weight | 0.2 kg |
