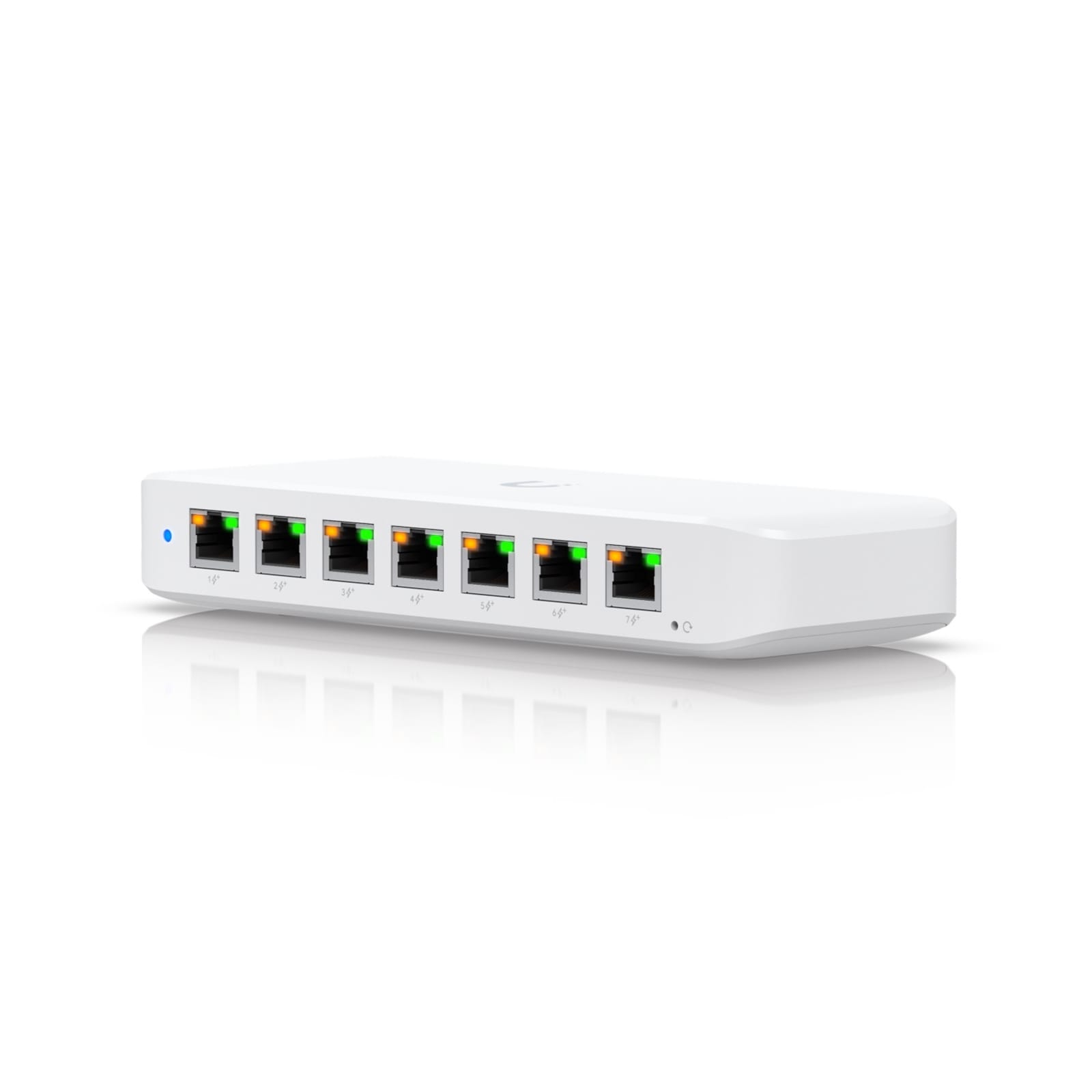

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

(7) GbE PoE+ output ports

(1) GbE port with optional PoE++ input

52W PoE availability with the included AC power adapter

Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")

Weight Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) 60W adapter: 330 g (11.6 oz)

Enclosure Material Polycarbonate

Management Interface Ethernet In-Band

Networking Interface (8) GbE RJ45 ports

PoE Interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-Blocking Throughput 8 Gbps

Switching Capacity 16 Gbps

Forwarding Rate 11.904 Mpps

Power Method (1) 54V, 1.1A power adapter (Included) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power Supply 54V, external, 1.1A/60W

Supported Voltage Range 44—57V DC

Max. Power Consumption 9W with PoE input (Excluding PoE output) 8W with AC adapter input (Excluding PoE output)

Total Available POE PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W

Max. PoE+ Wattage Per Port by PSE 30W

Button Factory Reset

Ambient Operating Temperature PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity 10 to 90% noncondensing

Certifications CE, FCC, IC

Layer 2 Features Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit

System Status

Ethernet PoE Link/Activity

UniFi Network Version 8.0.7 and later
