ASROCK

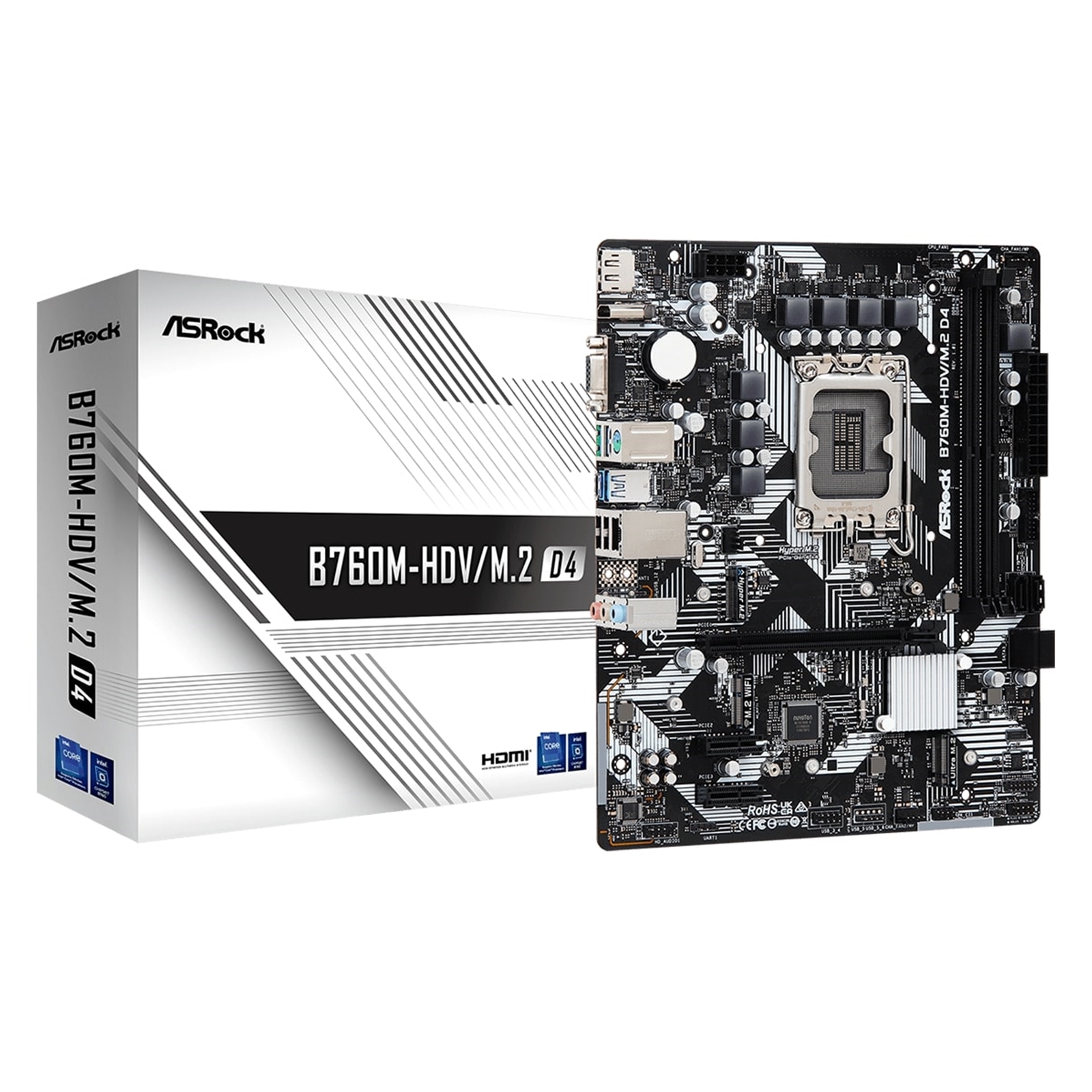

ASRock /M.2 D4 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN

Name: ASRock /M.2 D4 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN
Brand: ASROCK
SKU: B760M-HDV/M.2 D4
Price: 86.82 GBP
Availability: InStock

SKU B760M-HDV/M.2 D4 EAN / GTIN 4710483942020

£86.82

inc. VAT

114 in stock

Weight 0.82 kg

Delivery Next working day delivery £10.20 (UK mainland), Saturday £19.74. Prices include VAT. Delivery & returns policy

Order within 22h 59m for next working day delivery Order by 4:30pm Mon-Fri for next working day delivery, or by 4:30pm Friday for Saturday delivery.

114 in stock

Secure checkout UK-based support Pay with your Credit/Debit Card · Apple Pay · Google Pay · PayPal

Need help choosing? We can help you check compatibility or suitability before you order.

01392 330 292 Email sales

Product information

Product details

Delivery and setup: The price shown is for this product supplied directly to you from our warehouse, without setup by Edworthy Media and Technology Limited. Setup is available at an additional cost. Please contact us before ordering for a quote including setup.

Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear) 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Auto Driver Installer

Shape The Universe HDMI Polychrhome S Y N C WiFi 6E

5+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4) Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done!

Unique Feature Rock-Solid Durability 5+1+1 Power Phase EZ Update ASRock Auto Driver Installer

CPU Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)

Chipset Intel B760

Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS 128Mb AMI UEFI Legal BIOS with GUI support

Graphics Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Audio 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

LAN Gigabit LAN 10/100/1000 Mb/s Realtek 8111H

Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) All USB ports support ESD Protection

Connector 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer

Accessories 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets

Form Factor Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

OS Microsoft Windows 10 64-bit / 11 64-bit

Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

Technical information

Specifications

Full technical specifications for this product.

Physical details

Weight: 0.82 kg
