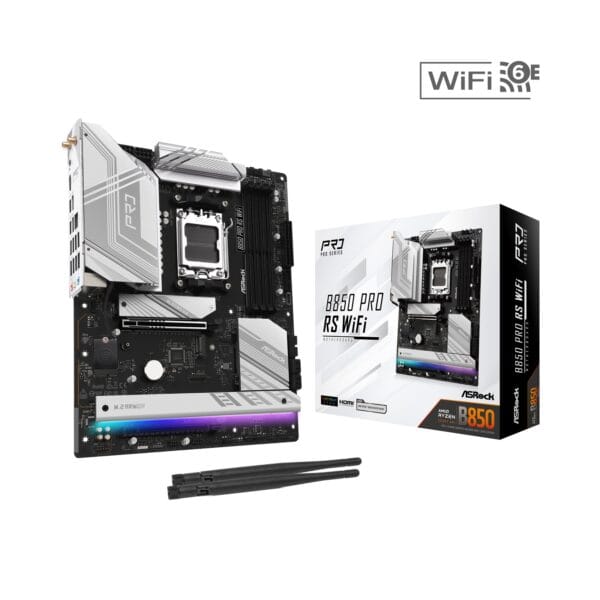

ASRock B850 PRO RS WiFI

Key Features Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC) 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 Graphics Output Options: 1 x HDMI, 1 x USB Type-C (DP-alt) Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 1 x Blazing M.2 (PCIe Gen5x4) 2 x Hyper M.2 (PCIe Gen4x4) 1 x Ultra M.2 (PCIe Gen3x4) 4 x SATA3 1 x USB 3.2 Gen2x2 Type-C (Front) 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen1 Type-C (Rear) 8 x USB 3.2 Gen1 (4 Rear, 4 Front) 10 x USB 2.0 (6 Rear, 4 Front)

14 + 2 + 1 POWER PHASE DESIGN + DR.MOS Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.

BLAZING M.2 (PCIE GEN5 x4) Supports up to 4 x NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard.

USB TYPE-C (DP-ALT MODE) USB Alternate Mode allows USB Type-C ports to enable both data transfer and display output to DisplayPort monitors through a single cable.

M.2 BOTTOM HEATSINK Dissipate heat efficiently through the motherboard PCB, maximize performance while maintaining system stability.

FRONT USB 3.2 GEN2x2 TYPE-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation.

WiFi 6E (802.11axe) Better and faster internet traffic with lower latency!
