Gigabyte

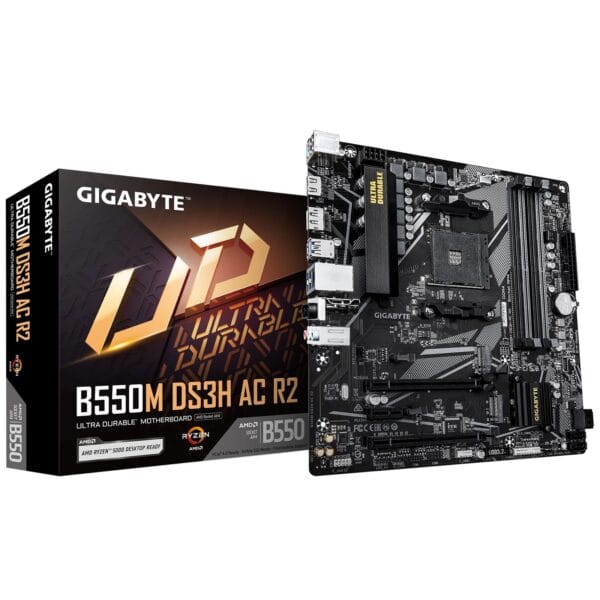

Gigabyte B550M DS3H AC R2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Socket, GbE LAN

Code: B550M DS3H AC R2

Key features

  • AM4 socket
  • Micro-ATX
  • DDR4 memory
  • Weight: 0.85 kg
  • Operating System: Support for Windows 11 64-bit Support for Windows 10 64-bit
  • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
View full specification

Overview

Delivery and setup: The price shown is for this product supplied directly to you from our warehouse, without setup by Edworthy Media and Technology Limited. Setup is available at an additional cost. Please contact us before ordering for a quote including setup.

Gigabyte AMD AM4 Socket Motherboard

Features

AMD Socket AM4:Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital 5+3 phases VRM solution Dual Channel DDR4:4*DIMMs WIFI EZ-Plug:Quick and easy design for Wi-Fi antenna installation EZ-Latch:PCIe slots with Quick Release Design Ultra-Fast Storage:2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal:VRM Thermal Armor Advanced Fast Networking:GbE LAN & Wi-Fi 5 Extended Connectivity:HDMI, Displayport PCIe UD Slot:PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

AMD StoreMI Technology GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. The benefits of AMD StoreMI: • Making the PC experience fast, smooth and easy • Optimizing computer responsiveness from system boot to application launch • Offering SSD performance with HDD capacity at an affordable cost • Quickly accessing key files by automatically learning users' computing behaviors

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek GbE LAN with Bandwidth Management Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Cooling

SMART FAN 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features High Current Support Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Multiple temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Fan Stop Fan can stop completely below users' specified temperature point

Lighting

RGB FUSION 2.0 With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Ultra Durable

Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card.

Solid Pin Power Connectors B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Specifications

BrandGigabyte
Product codeB550M DS3H AC R2
Weight0.85 kg
Memory4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Shipping weight0.85 kg
