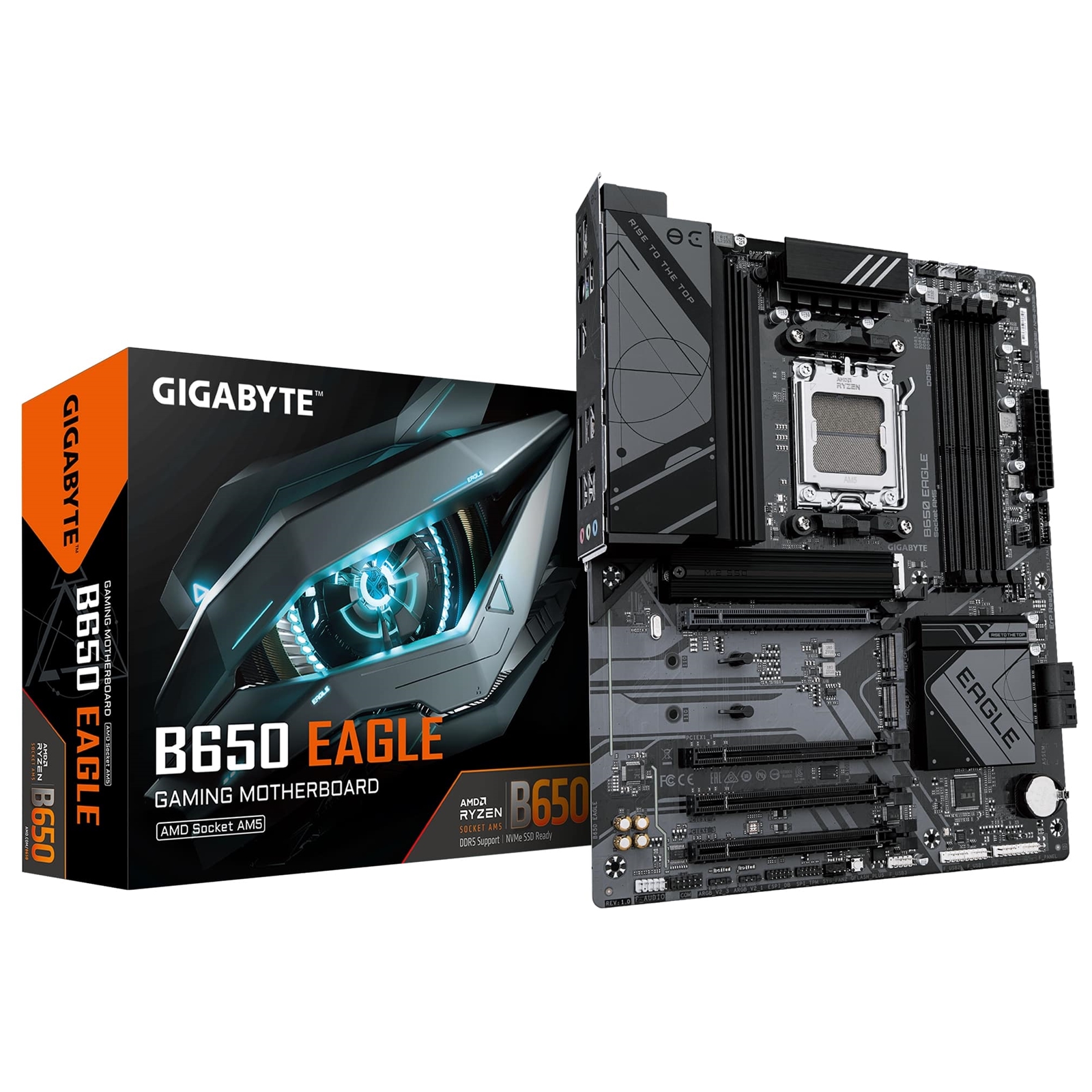

B650 EAGLE

Key Features AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors Unparalleled Performance: 12+2+2 Phases Digital VRM Solution Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support SuperSpeed Storage: 1 x PCIe 5.0 + 2 x PCIe 4.0 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch: PCIe x16 Slot with Quick Release Design Fast Networks: GbE LAN Extended Connectivity: DP, HDMI, Rear USB 10Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design The best VRM design ever built with the highest quality components.

EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Thermal Fully Covered MOSFET Heatsink

Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

GbE LAN with Bandwidth Management Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio High-End Audio Capacitors These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus Update the BIOS easily without installing the CPU, memory, and graphics card. STEP 1: PPlug the 24-pin and 8-pin power supply cables into the motherboard. STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port. STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.

Smart Fan 6 ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring. High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection. Precision Control: Multiple temperature/fan speed control points for precise fan curve. Dual Curve Mode: Slope/Stair dual mode for different user scenario. Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings. Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals. Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system. EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points. Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
