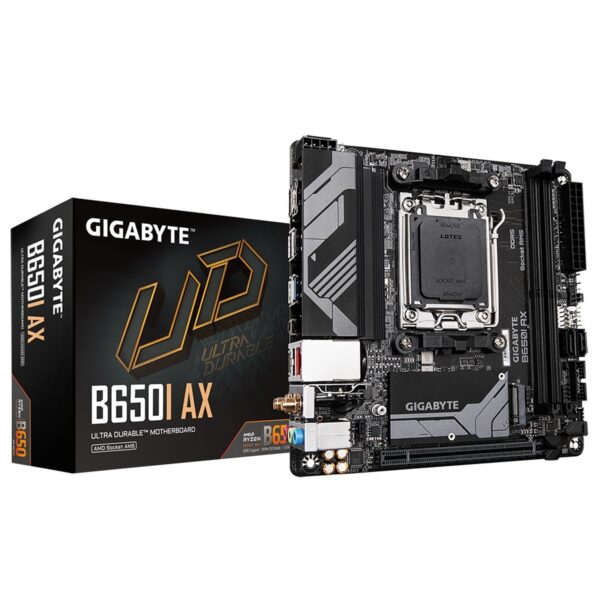

B650I AX

Key Features AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors Unparalleled Performance: 5+2+1 Phases Digital VRM Solution Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector EZ-Latch: PCIe x16 Slot with Quick Release Design Fast Networks: Wi-Fi 6E 802.11ax & 2.5GbE LAN Extended Connectivity: DP, HDMI Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design 5+2+1 Phases Digital VRM Solution with high performance DrMOS

EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond

Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN First adopter on 2.5GbE LAN onboard 2X Faster than ever Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

PCIe 4.0 Hardware Design GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers

Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! STEP 1: Plug 24pin & 8pin power supply cable on motherboard STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

Smart Fan 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control: Multiple temperature/fan speed control points for precise fan curve Dual Curve Mode: Slope/Stair dual mode for different user scenario Fan Stop: Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control. Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval. Manual Input: For advanced users, we provide fan speed manual input for more precise control. EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. Note: The picture is for reference and may vary by model.
