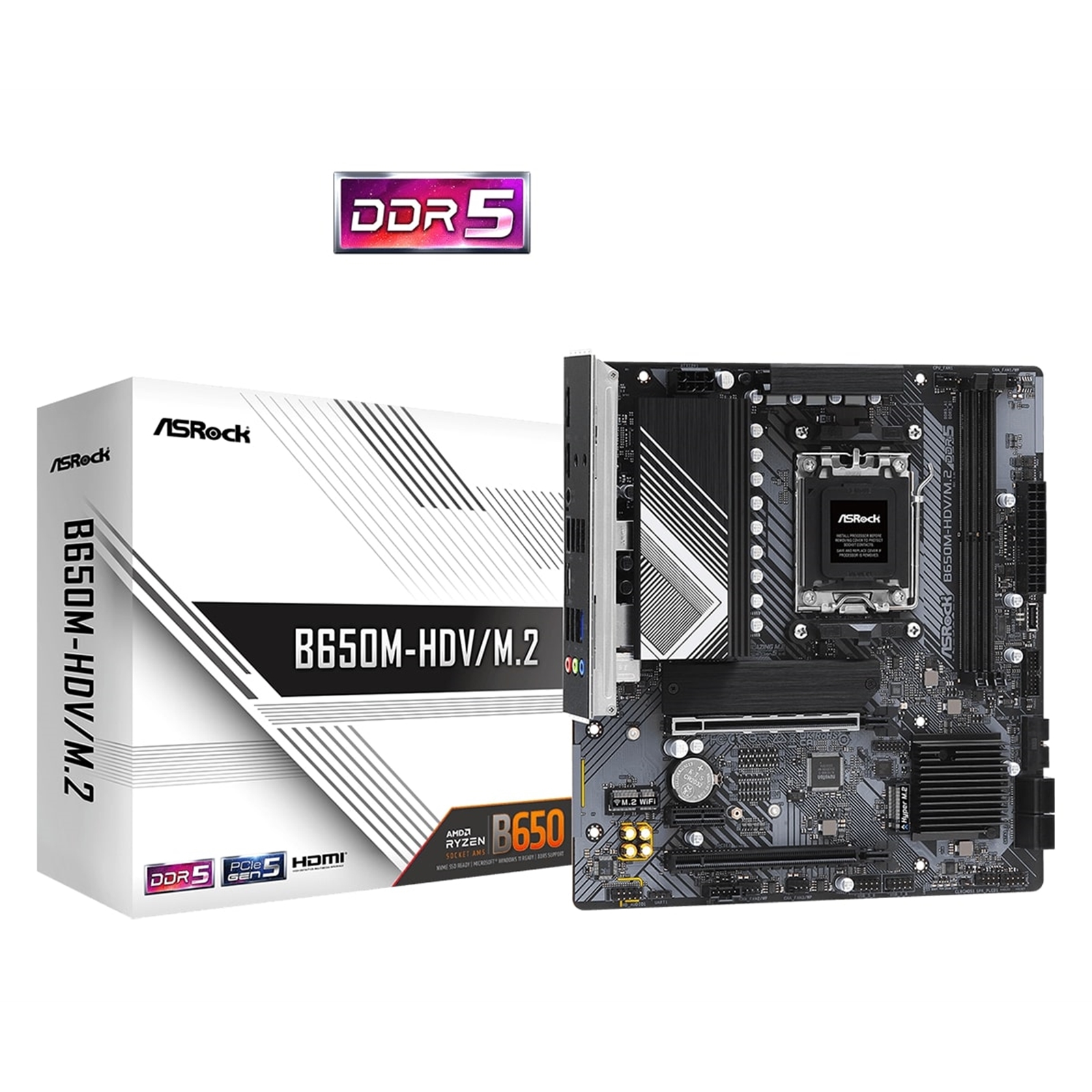

B650M-HDV/M.2

Key Features Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors 8+2+1 Power Phase, Dr.MOS 2 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC) 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Integrated AMD RDNA 2 Graphics Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4) 1 USB 3.2 Gen2 Front Type-C, 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer, BIOS Flashback Pre-Installed I/O Shield

Optimized VRM Design

Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 Memory with Protection Circuit Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include: Extra anchor points Stronger latch Ensure signal stability Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Static Noise Suppression Echo Cancellation Lateral Sound Cancellation Voice Stabilizer

Ultimate Gaming Experience Sound Tracker The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2 Type-C Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting

Auto Driver Installer Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically! Step1: Install Auto Driver Installer Step2: ADI will automatically download and install all necessary drivers. Step3: Done!

BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Pre-Installed IO Shield ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
