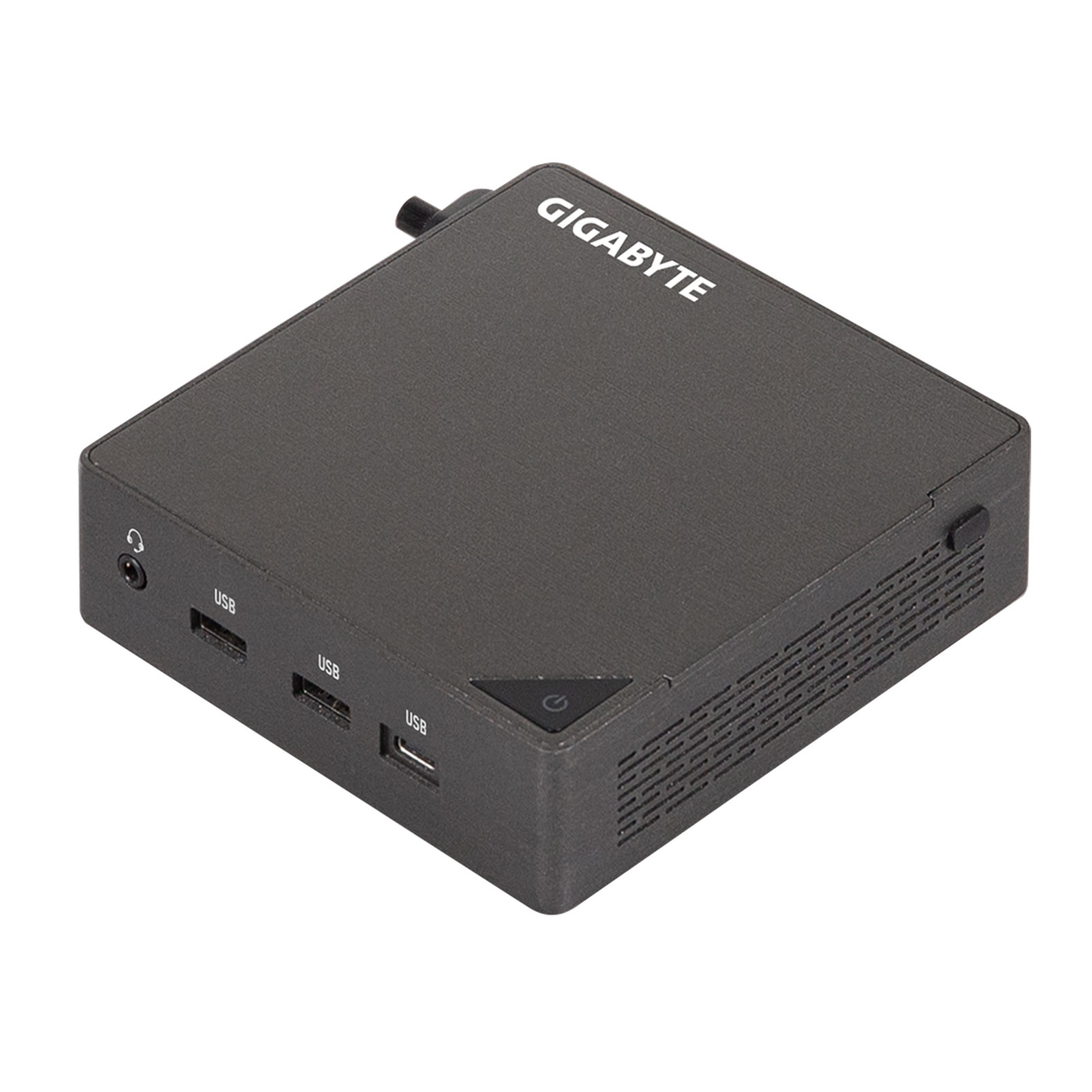

The GIGABYTE BRIX GB-BRU5-225H is a new mini-PC featuring the latest Intel® Core™ Ultra processors (Series 2) and boasts an integrated GPU with a remarkable 20% performance increase over the previous generation. Furthermore, it unleashes exceptional AI performance, delivering up to 83 Tera Operations Per Second (TOPS), making it perfectly suited for demanding generative AI tasks and intensive multitasking scenarios.

Space-saving Ultra compact PC design. Particularly useful in environments with limited space.

Low power Energy savings and lower electricity bills.

Portability Easily carried around for use in different locations.

Low noise Quieter operation, which is particularly appreciated in quiet working environments.

Suitability for specific purposes Designed for specific purposes, such as home theater PCs, smart home controllers, data storage servers, etc.

Low maintenance costs With a simple design and fewer components, it reduces maintenance costs and makes upgrades or repairs easier.

DIMENSIONS Size 112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size 105 mm x 114.49 mm

PERFORMANCE CPU Intel® Core™ Ultra 5 processor 225H, 14C (4P + 8E + 2LPE), 28W

Memory 2 x SO-DIMM DDR5 slots, support up to 5600MHz, Max. 96GB or 2 x CSO-DIMM DDR5 slots, support up to 6400MHz, Max. 96GB

Graphics Intel® Arc™ Graphics, 130T GPU 2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC) 2 x USB Type-C ALT (DisplayPort v2.1) (Intel® Arc™ Graphics requires using 2 x SO-DIMM/CSO-DIMM dual channel memory)

Audio Realtek ALC245

NETWORKING LAN 2.5GbE LAN (Intel® I226V)

EXPANSION SLOTS 1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design) 1 x M.2 M Key 2280 slot (PCIe Gen4x4 + SATA) 1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

I/O PORTS Front I/O 1 x Headset 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C (ALT)

Rear I/O 2 x HDMI (TMDS & CEC) 1 x USB4 1 x USB 3.2 Gen2 Type-C (PD IN) 1 x USB 3.2 Gen2 Type-A 1 x USB 2.0 Type-A 1 x RJ45

Left I/O 1 x Kensington Lock Slot

POWER Input: AC 100-240V Output: DC 20V/5A, 100W (Type-C PD)

VESA MOUNT Supports 75 x 75 and 100 x 100 mm

OPERATING SYSTEM Windows 11 64-bit

ENVIRONMENT System Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C

NPU Intel® AI Boost NPU up to 13 TOPs
