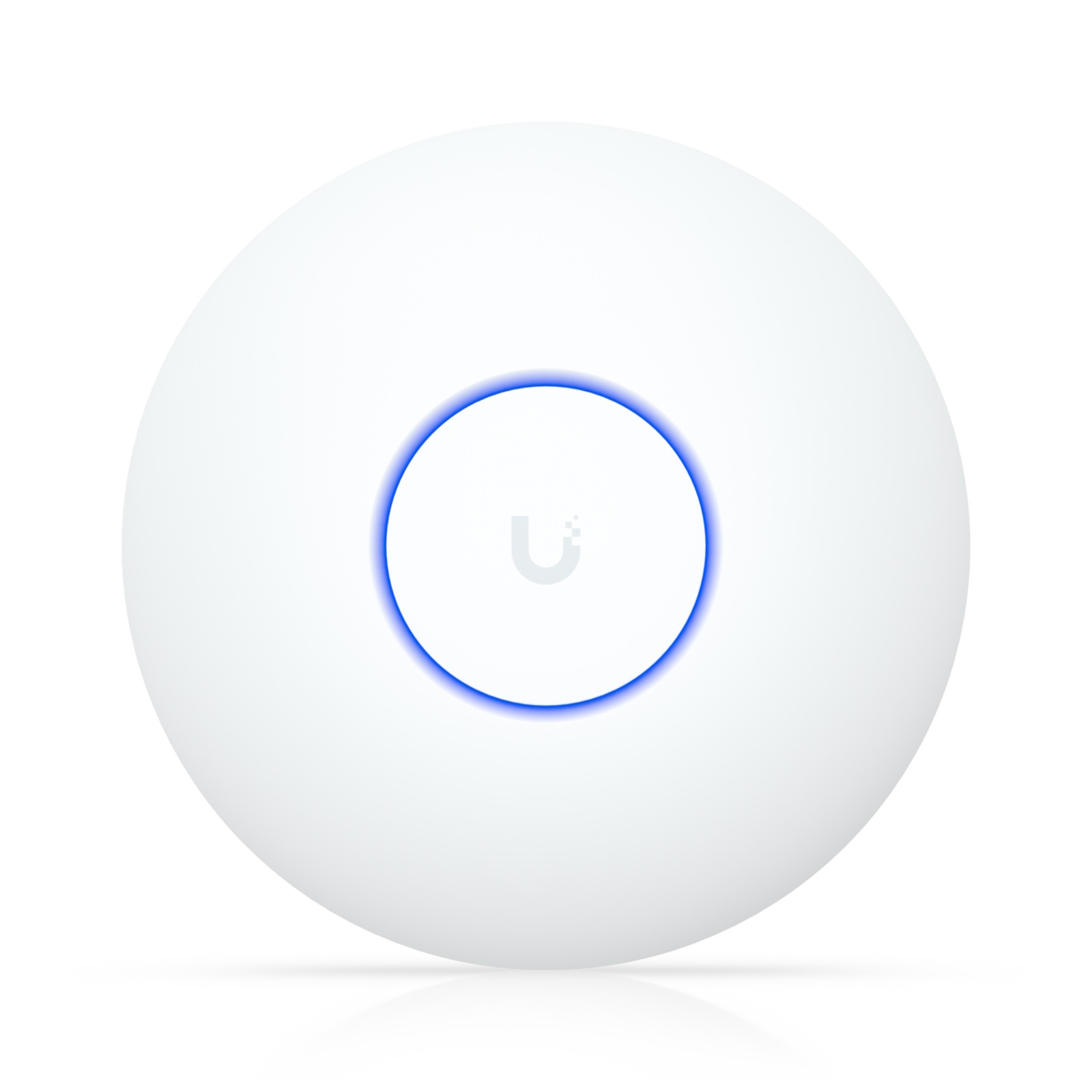

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Dimensions d171.5 x 33 mm (d6.8 x 1.3")

WiFi Standard WiFi 7

Spatial Streams 4

Coverage Area 115 m2 (1,250 ft2)

Max. Client Count 200+

Uplink 2.5 GbE

Mounting Ceiling, Wall (Lite Mount Included)

Power Method POE

MIMO 5 GHz 2 x 2 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 5 GHz 4.3 Gbps (BW240)

2.4 GHz 688 Mbps (BW40)

Antenna Gain 5 GHz 5 dBi

2.4 GHz 4 dBi

Max. TX Power 5 GHz 24 dBm

2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing Yes

Band Steering Yes

802.11v BSS Transition Management Yes

802.11r Fast Roaming Yes

802.11k Radio Resource Management (RRM) Yes

Advanced Radio Management Yes

Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal Yes

Private Pre-Shared Key (PPSK) Yes

WiFi Speed Limiting Yes

Client Device Isolation Yes

WiFi Schedules Yes

RADIUS over TLS (RadSec) Yes

Dynamic RADIUS-assigned VLAN Yes

Max. Power Consumption 13W

Supported Voltage Range 42.5—57V DC

Networking Interface (1) 2.5 GbE RJ45 port

Weight 313 g (11 oz)

Management Ethernet

Enclosure Material UV-stabilized polycarbonate

Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs System

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications CE, FCC, IC
