ASRock

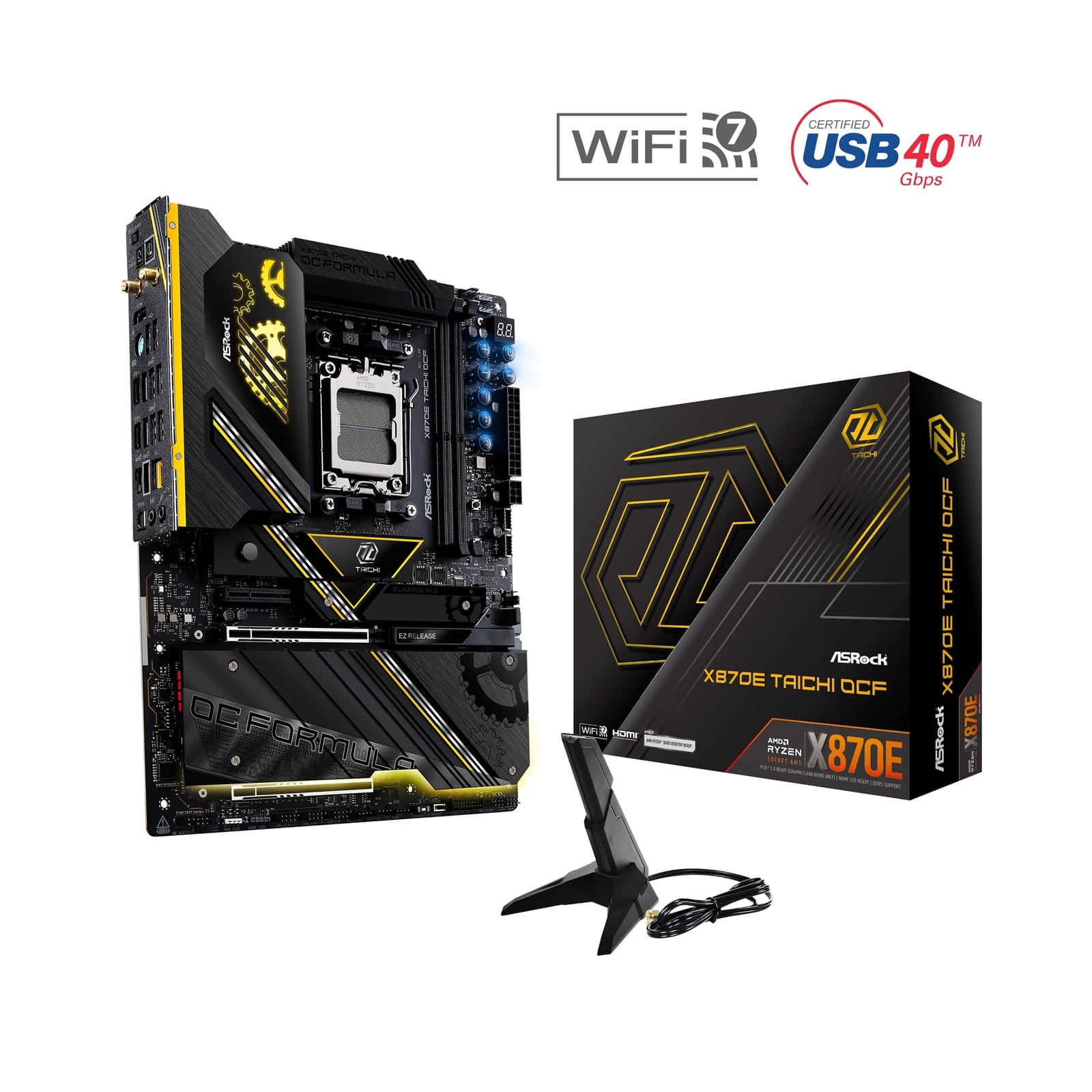

ASRock X870E TAICHI OCF AMD AM5 Socket Motherboard, Wi‑Fi 7

Code: X870E TAICHI OCF

Key features

  • AM5 socket
  • Weight: 3.5 kg
View full specification

Overview

Delivery and setup: The price shown is for this product supplied directly to you from our warehouse, without setup by Edworthy Media and Technology Limited. Setup is available at an additional cost. Please contact us before ordering for a quote including setup.

X870E TAICHI OCF

Unique Feature Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) - 6 x M.2 Sockets Rock-Solid Durability - Server-Grade Low-Loss PCB - 22+2+1 Power Phase, 110A SPS for Vcore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming - 5G LAN, 802.11be Wi-Fi 7 Module Professional Overclocking - ASRock Hyper BCLK Engine - Physical OC Buttons - V-Probe™ EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer

CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* - Supports ASRock Hyper BCLK Engine

Chipset - AMD X870E

Memory - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - AMD Ryzen™ 9000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)* - AMD Ryzen™ 8000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 10400+(OC)* - AMD Ryzen™ 7000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 128GB* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS - 2 x 512Mb AMI UEFI Legal BIOS with GUI support

Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Rear Outputs) - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio

LAN - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126

Wireless LAN - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz * frequency band - Supports 160MHz channel bandwidth with 6GHz * frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO

Slots CPU: - 2 x PCIe 5.0 x16 Slots (PCIE2 and PCIE3), support x16 or x8/x8 modes* Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™

Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors

RAID - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear (USB32_23)) Chipset: - 2 x USB 3.2 Gen2x2 Type-C (Front) - 5 x USB 3.2 Gen2 Type-A (Rear (USB32_1, USB32_456 and USB32_7)) - 1 x USB 3.2 Gen2 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Front) - 8 x USB 2.0 (2 Rear, 6 Front)

Connector - 2 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)**** - 1 x Front Panel Audio Connector (15µ Gold Audio Connector) - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports) - 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)***** - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Retry Button - 1 x Safe Boot Button - V-Probe™: 6-set of onboard voltage measurement points laid - Rapid OC Buttons: +/- buttons to adjust OC frequency - 1 x Slow Mode Switch - 1 x LN2 Mode Switch - 1 x NickShih's OC Profile 1 Button with LED - 1 x NickShih's OC Profile 2 Button with LED - 1 x NickShih's OC Profile 3 Button with LED

Rear Panel I/O - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 7 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x BIOS Selection Switch - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI Software - ASRock Formula Drive - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

Accessories - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x DRAM Cooling Fan - 1 x ARGB Splitter Cable - 2 x Thermistor Cables

Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 10 Layer PCB - 2oz Copper PCB

OS - Microsoft Windows® 10 64-bit / 11 64-bit

Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Specifications

BrandASRock
Product codeX870E TAICHI OCF
Weight3.5 kg
Shipping weight3.5 kg
