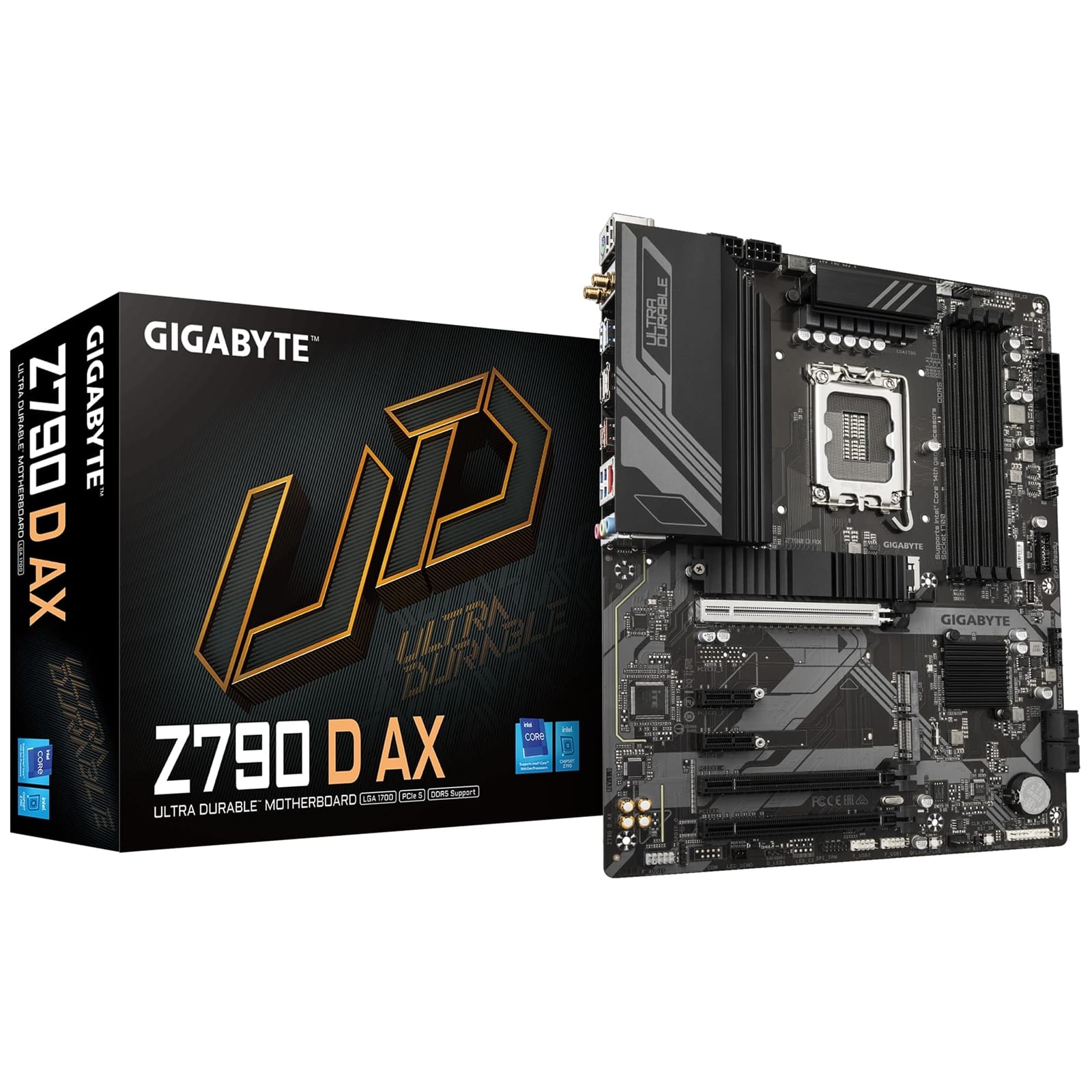

Z790 D AX (rev. 1.0)

Key Features Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Twin 12 x +1+1 Phases Digital VRM Solution Dual Channel DDR5: 4 x DIMMs with XMP 3.0 Memory Module Support Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design The best VRM design ever built with the highest quality components.

Unlock DDR5 DDR5 Overclocking Up to 7600 and Beyond GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design Featuring PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.

Hi-Fi Audio High-End Audio Capacitors These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus Update the BIOS easily without installing the CPU, memory, and graphics card. STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard. STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port. STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.

Smart Fan 6 ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring. High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection. Precision Control: Multiple temperature/fan speed control points for precise fan curve. Dual Curve Mode: Slope/Stair dual mode for different user scenario. Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

Enhance Fan Curve UI Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points. Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

UC BIOS Redesigned UI and UX an intuitive operation interface with an aesthetically pleasing design.

Quick Access 9 customizable option slots for effortless access in Easy Mode.

PerfDrive exclusive BIOS settings that optimize the performance based on the cooling configuration.
