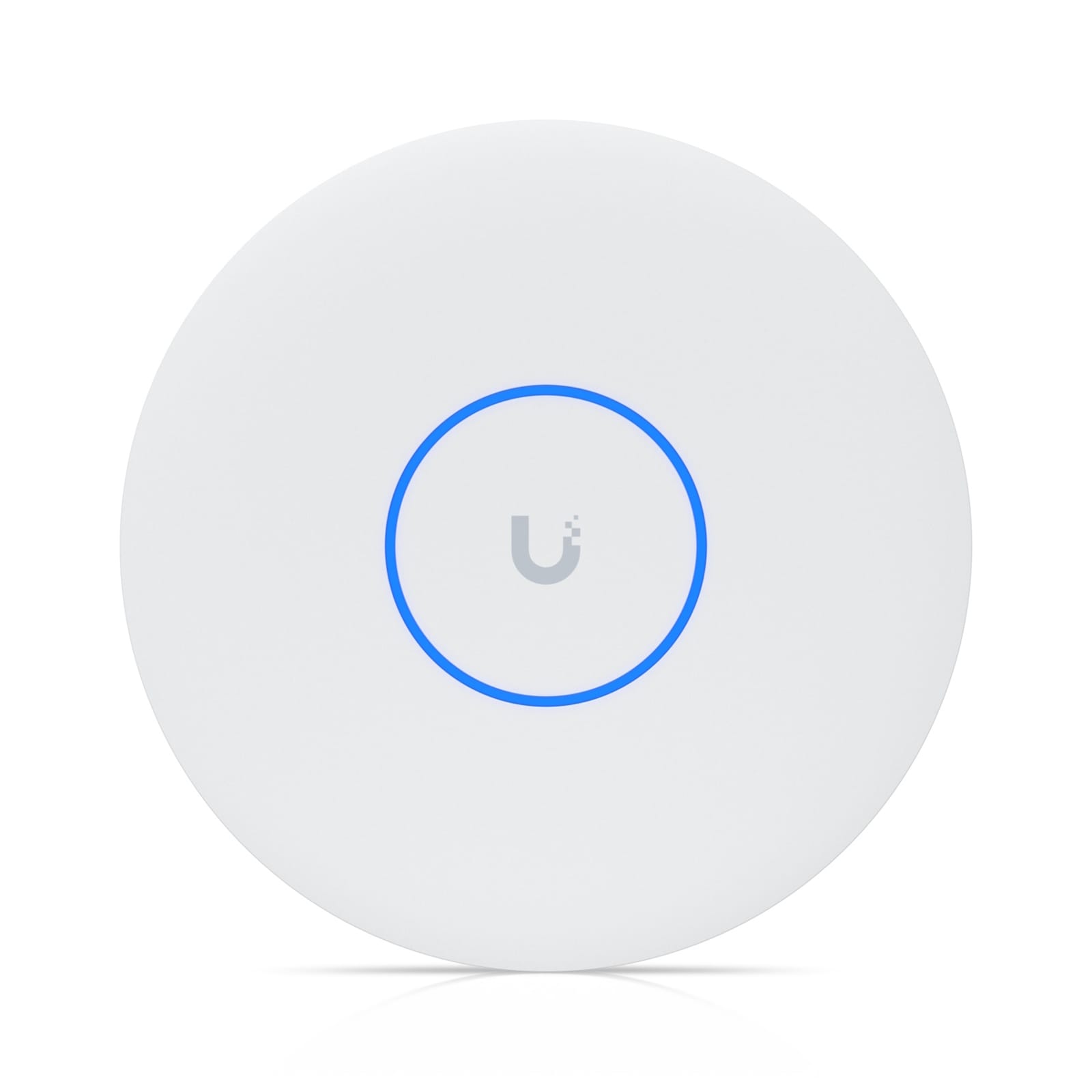

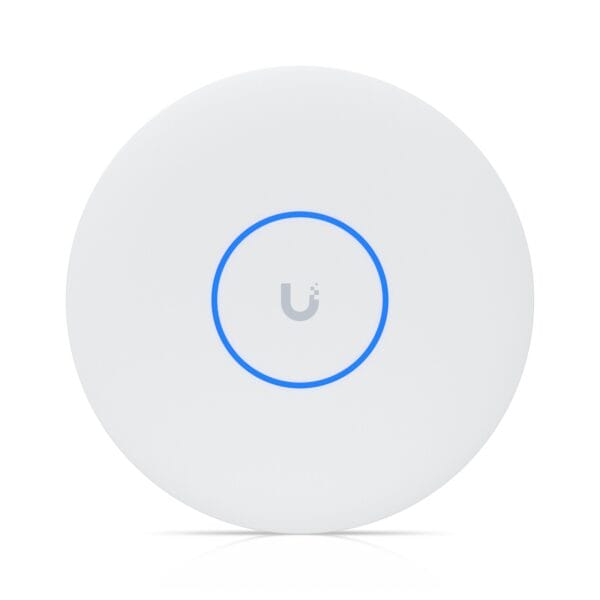

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support 6 spatial streams 140 m2 (1,500 ft2) coverage 300+ connected devices Powered using PoE+ 10 GbE uplink

Dimensions d206 x 32.5 mm (d8.1 x 1.3")

WiFi Standard WiFi 7

Spatial Streams 6

Coverage Area 140 m2 (1,500 ft2)

Max. Client Count 300+

Uplink 10 GbE

Mounting Ceiling, Wall (Lite Mount Included)

Power Method PoE+

MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO)

5 GHz 2 x 2 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 6 GHz 5.8 Gbps (BW320)

5 GHz 4.3 Gbps (BW240)

2.4 GHz 688 Mbps (BW40)

Antenna Gain 6 GHz 6 dBi

5 GHz 5 dBi

2.4 GHz 4 dBi

Max. TX Power 6 GHz 24 dBm

5 GHz 26 dBm

2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing Yes

Band Steering Yes

802.11v BSS Transition Management Yes

802.11r Fast Roaming Yes

802.11k Radio Resource Management (RRM) Yes

Advanced Radio Management Yes

Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal Yes

Private Pre-Shared Key (PPSK) Yes

WiFi Speed Limiting Yes

Client Device Isolation Yes

WiFi Schedules Yes

RADIUS over TLS (RadSec) Yes

Max. Power Consumption 22W

Supported Voltage Range 42.5 - 57V DC

Networking Interface (1) 10 GbE RJ45 port

Weight 750 g (1.7 lb)

Management Ethernet

Enclosure Material UV-stabilized polycarbonate, aluminum alloy

Mount Material Stainless steel (SUS304), galvanized steel (SGCC)

LEDs System

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications CE, FCC, IC
